Fastener Specifications

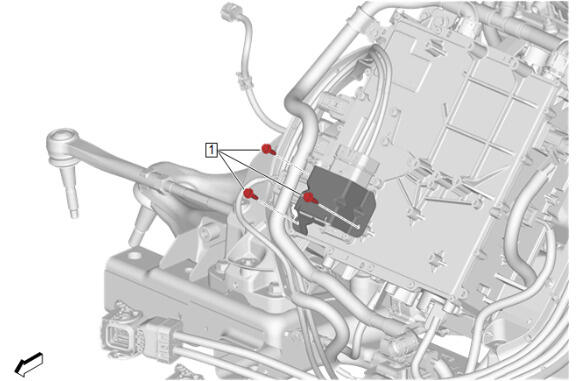

GM5869324Courtesy of GENERAL MOTORS COMPANY
Battery Charger Bolts @ Drive Motor Power Distribution Control Module Protector

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Distribution Control Module Bolt [3x] - - 9 N.m (80 lb in) Battery Charger Replacement

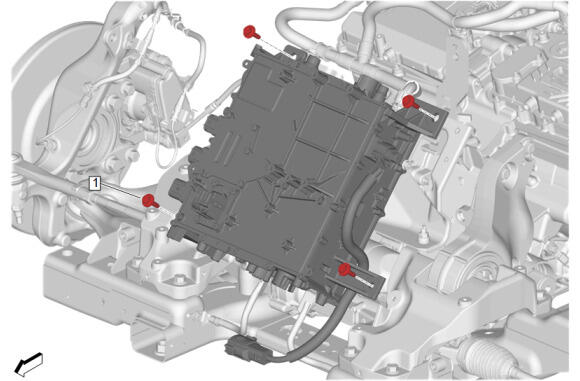

GM5867014Courtesy of GENERAL MOTORS COMPANY
Battery Charger Bolts @ Power Electric Carrier Frame

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Distribution Control Module Bolt [4x] - - 22 N.m (16 lb ft) Battery Charger Replacement

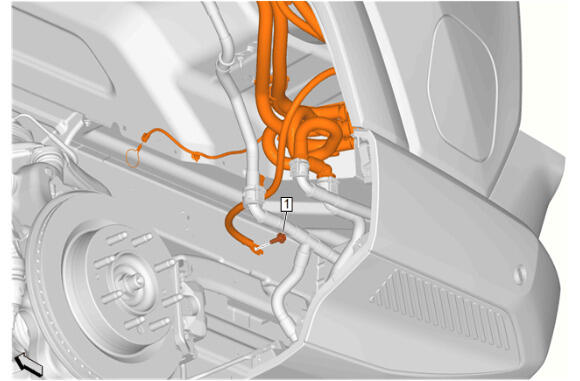

GM5870404Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupling Bolt @ Ground Strap

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Receptacle Bolt - - 22 N.m (16 lb ft) Battery Charger Coupler Replacement

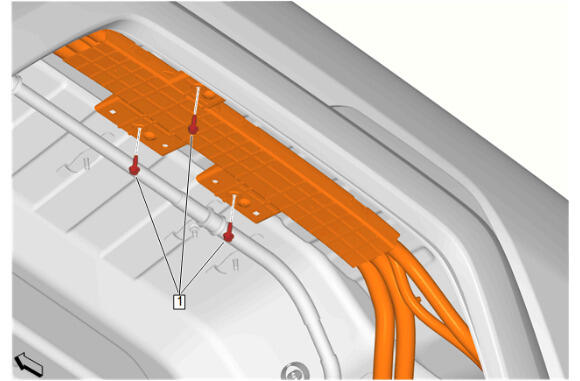

GM5870406Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupling Bolts @ Channel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Receptacle Bolt [3x] - - 9 N.m (80 lb in) Battery Charger Coupler Replacement

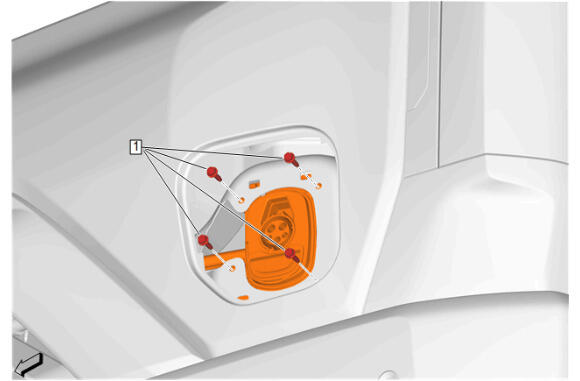

GM5870405Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupling Bolts @ Charge Port Housing

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Receptacle Bolt [4x] - - 9 N.m (80 lb in) Battery Charger Coupler Replacement

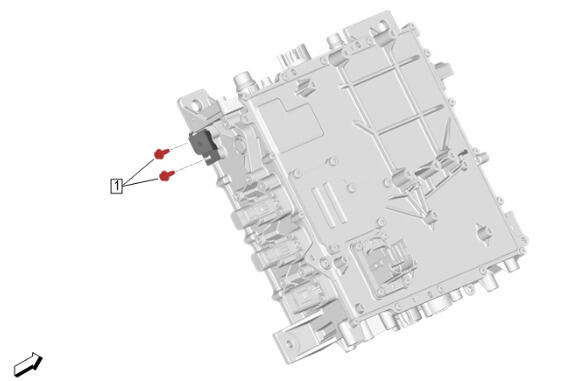

GM5905775Courtesy of GENERAL MOTORS COMPANY
Drive Motor Power Inverter Module Bracket Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Inverter Module Cooling Inlet Hose Bracket Bolt [2x] - - 9 N.m (80 lb in) Battery Charger Replacement
