Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

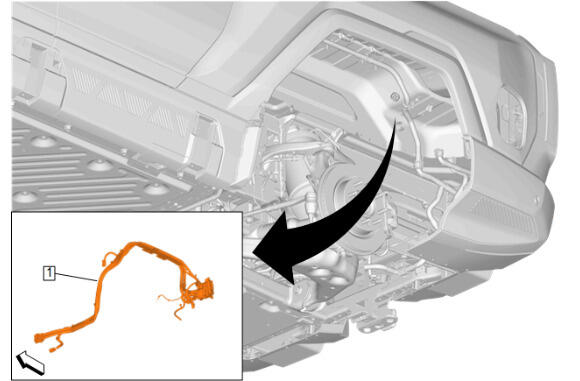

Battery Charger Coupler (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the battery charger coupler retainers (2).

CAUTION:

Refer to Fastener Caution

Drive Motor Battery Charger Receptacle Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

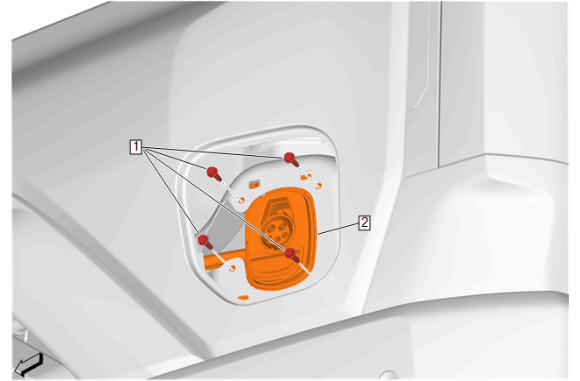

Battery Charger Coupler (2) - Install

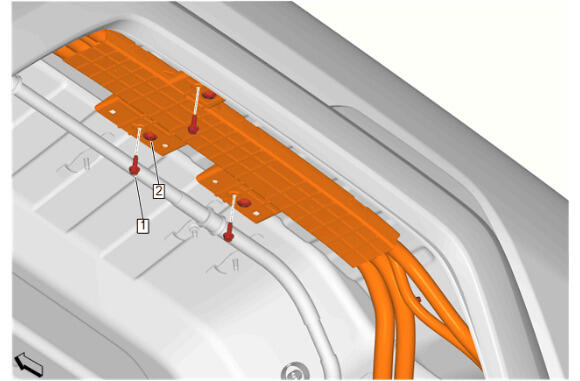

Drive Motor Battery Charger Receptacle Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

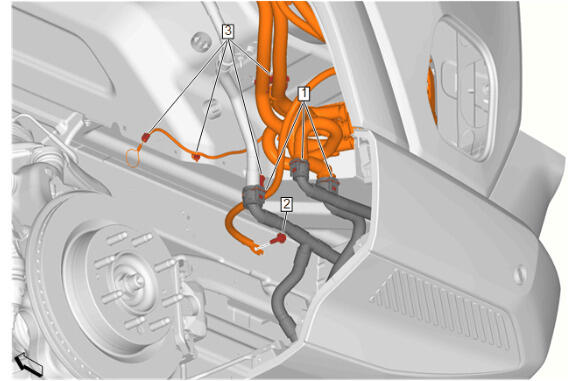

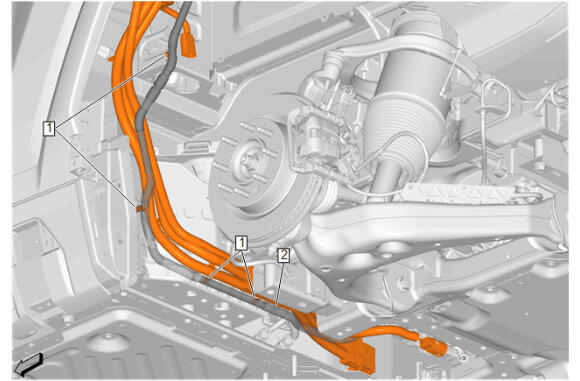

Install the battery charger coupler retainers (3).
Drive Motor Battery Charger Receptacle Bolt (2) - Install and tighten - Fastener Specifications
Drive Motor Battery Charger Receptacle Coolant Inlet Hose (1) - Connect [3x]
Courtesy of GENERAL MOTORS COMPANY

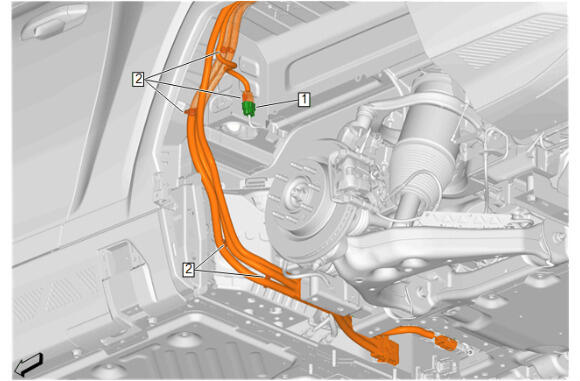

Install the battery charger coupler retainers (2).
Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Battery Charger Receptacle Coolant Outlet Hose (2) - Install
Install the drive motor battery charger receptacle coolant outlet hose retainers (1).

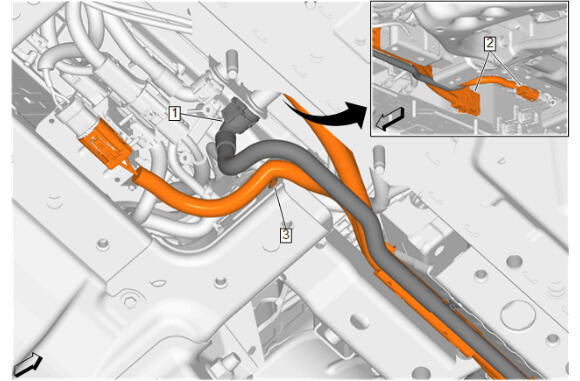

Courtesy of GENERAL MOTORS COMPANY

Install the battery charger coupler retainer (3).
Connect the electrical connectors. (2)
Drive Motor Battery Charger Receptacle Coolant Outlet Hose (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

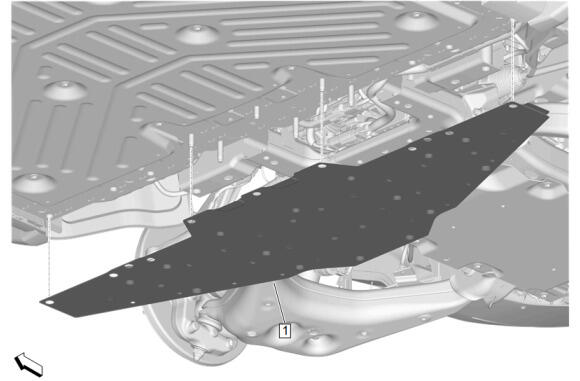

With the aid of an assistant, install the high voltage battery tray lower rear reinforcement (1).
Courtesy of GENERAL MOTORS COMPANY

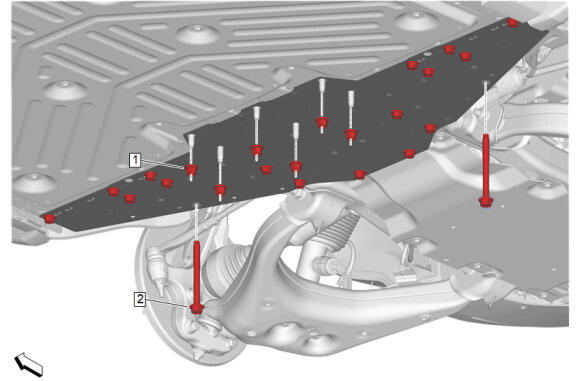

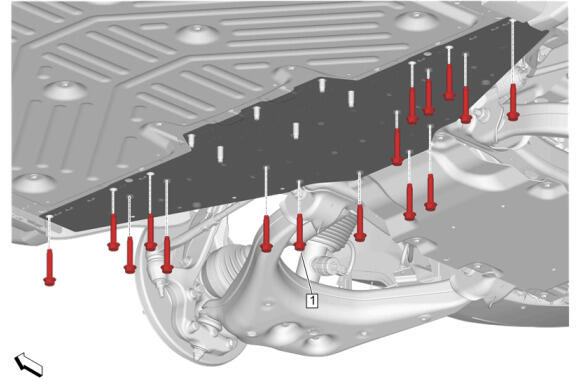

High Voltage Battery Tray Reinforcement Bolt (1) - Install and tighten [16x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

High Voltage Battery Tray Reinforcement Bolt (2) - Install and tighten [2x] - Fastener Specifications
High Voltage Battery Tray Reinforcement Nut (1) - Install and tighten [6x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear Wheelhouse Liner- Left Side (3) - Install - Rear Wheelhouse Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

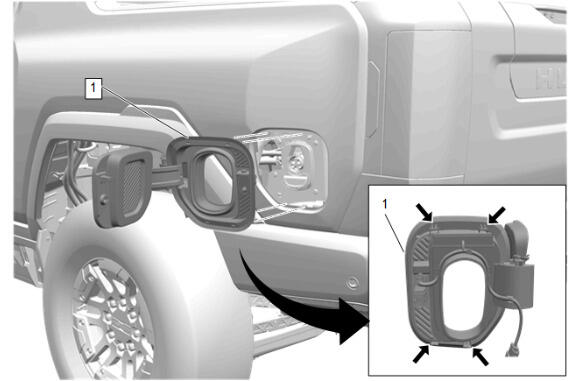

Position the charge port housing (1) to the outer side panel.
Press the charge port housing (1) to the outer side panel until fully seated.
Courtesy of GENERAL MOTORS COMPANY

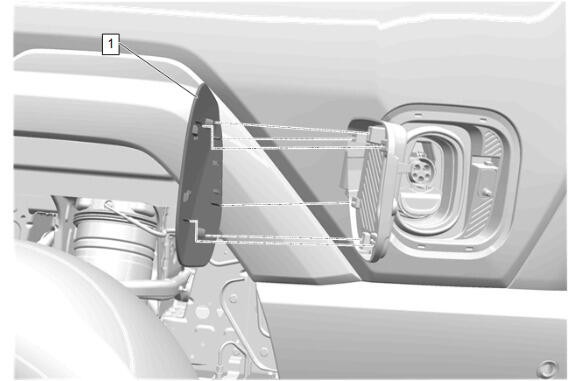

Accessory Power Receptacle Door (1) - Install
Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
Fill the drive motor battery cooling system. Drive Motor Battery Cooling System Draining and Filling
Enable the high voltage system. High Voltage Enabling
