Battery Positive and Negative Cable Extension Cable Upper Bolts
Battery Positive and Negative Cable Extension Cable Upper Bolts

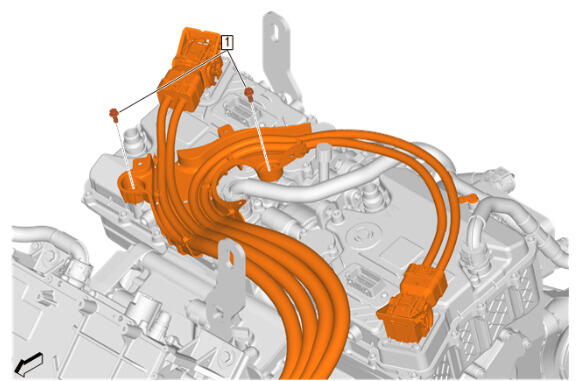

| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Battery Positive Cable Shield Bolt [2x] | - | - | 14 N.m (10 lb ft) | Battery Positive and Negative Cable Extension Cable Replacement |
