Battery Positive and Negative Cable Upper Bolts
Battery Positive and Negative Cable Upper Bolts

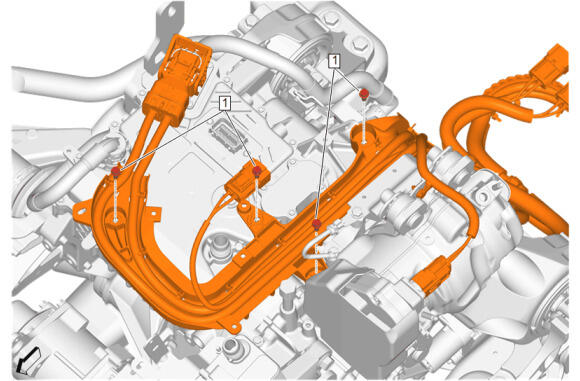

| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Battery Cable Clip Bracket Bolt [4x] | - | - | 9 N.m (80 lb in) | Battery Positive and Negative Cable Replacement (Front Drive Unit) |
