Removal Procedure

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

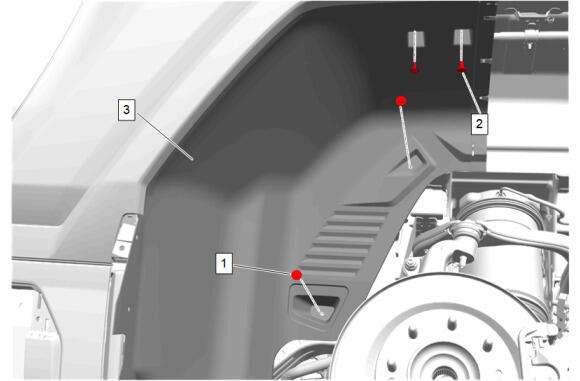

Rear Wheelhouse Liner- Right Side (3) - Remove - Rear Wheelhouse Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connectors. (1)
Courtesy of GENERAL MOTORS COMPANY

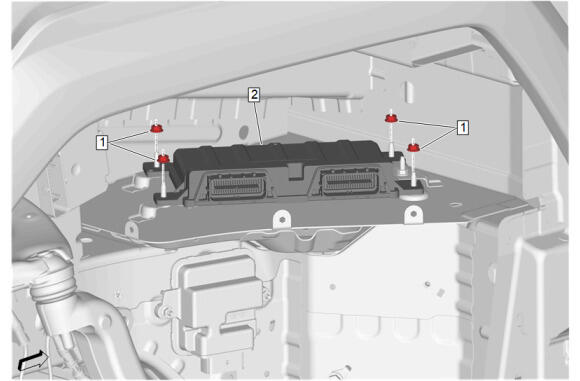

Hybrid Powertrain Control Module 2 Nut (1) - Remove [4x]
Battery Energy Control Module 2 (2) - Remove
