Installation Procedure

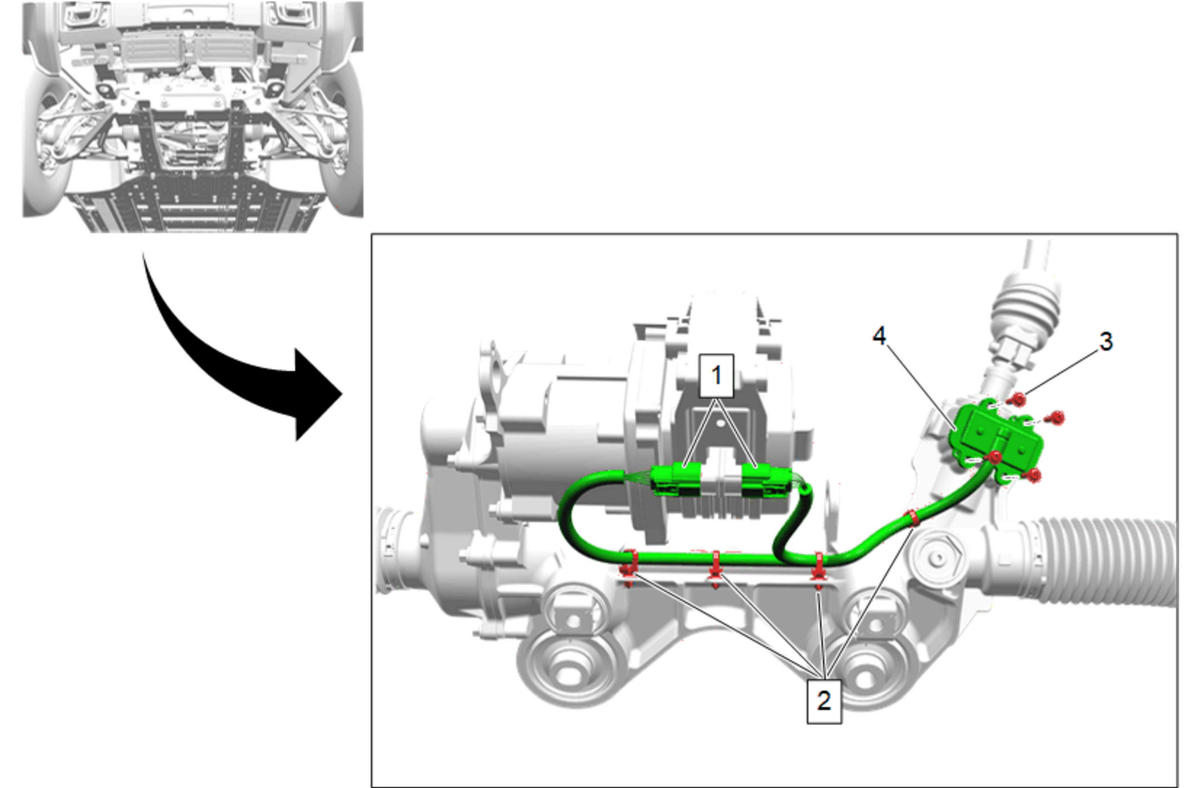

  1. GM5835485Courtesy of GENERAL MOTORS COMPANY

    Power Steering Control Module Wiring Harness (4) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Steering Gear Bolt (3) - Install and tighten [4x] - Fastener Specifications
  3. Engage the 4 wiring harness retainers.
  4. Connect the electrical connectors. (1)

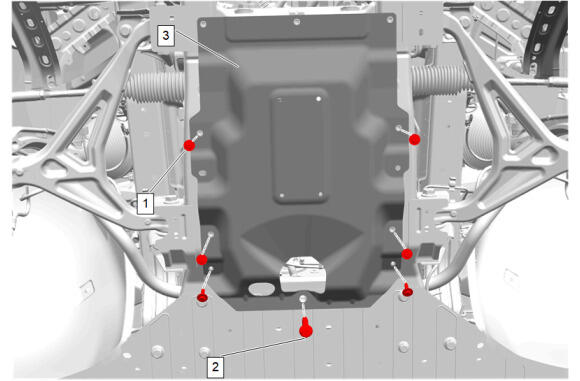

  5. GM5810317Courtesy of GENERAL MOTORS COMPANY

    Underbody Skid Shield (3) - Install

  6. High Voltage Battery Tray Reinforcement Bolt (2) - Install and tighten - Fastener Specifications
  7. Underbody Skid Rear Shield Bolt (1) - Install and tighten [6x] - Fastener Specifications

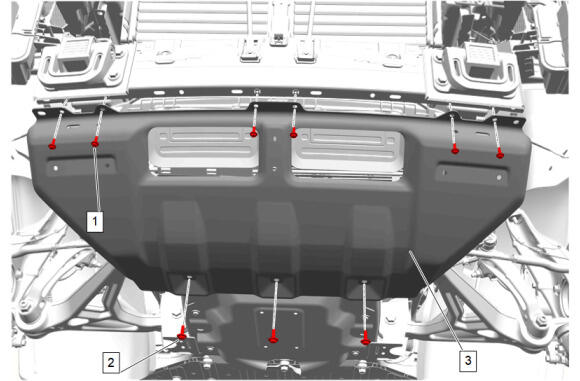

  8. GM5810304Courtesy of GENERAL MOTORS COMPANY

    Underbody Splash Shield (3) - Install

  9. Connect the electrical connector.
  10. Underbody Splash Shield Bolt- Lower (2) - Install and tighten [3x] - Fastener Specifications
  11. Underbody Splash Shield Bolt- Upper (1) - Install and tighten [6x] - Fastener Specifications

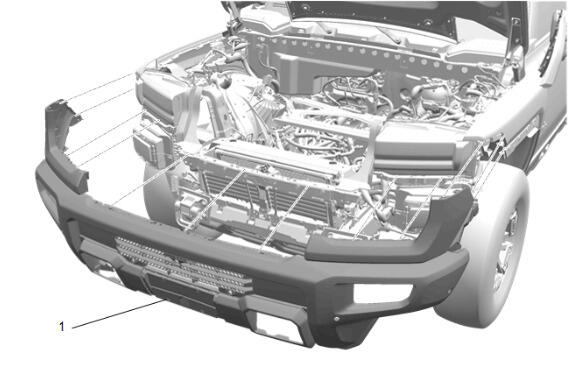

  12. GM5788843Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
