Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

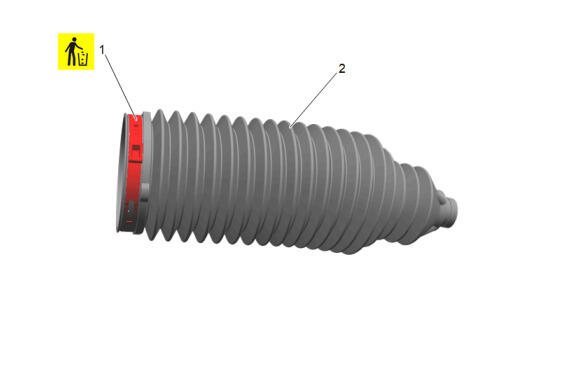

Position a NEW steering gear boot clamp -inner (1) on the steering gear boot (2).
Courtesy of GENERAL MOTORS COMPANY

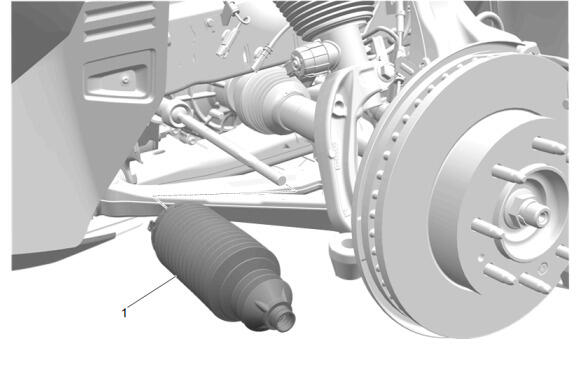

Steering Gear Boot (1) - Install
Courtesy of GENERAL MOTORS COMPANY

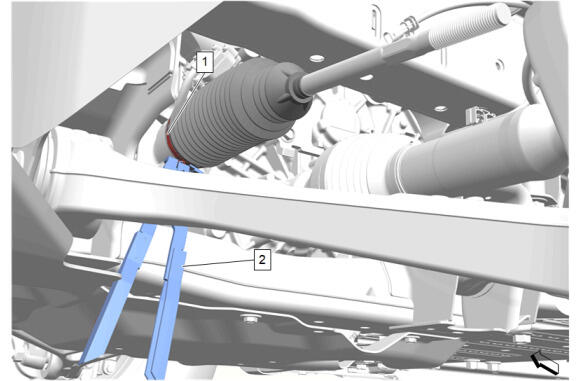

Steering Gear Boot Clamp- Inner (1) - Tighten- use CH-22610 Keystone Clamp Pliers (2)
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot Clamp- Outer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

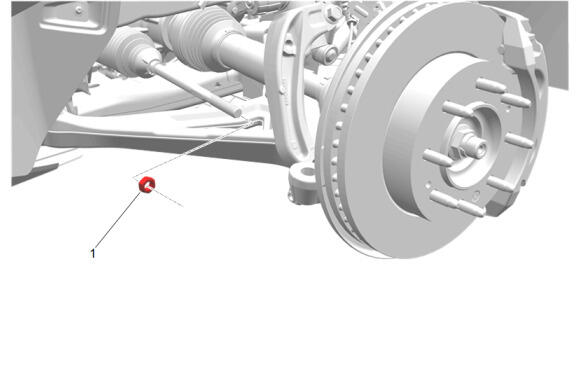

Install the steering linkage inner tie rod nut (1) until aligned with the previously placed matched mark on the steering linkage inner tie rod.
Courtesy of GENERAL MOTORS COMPANY

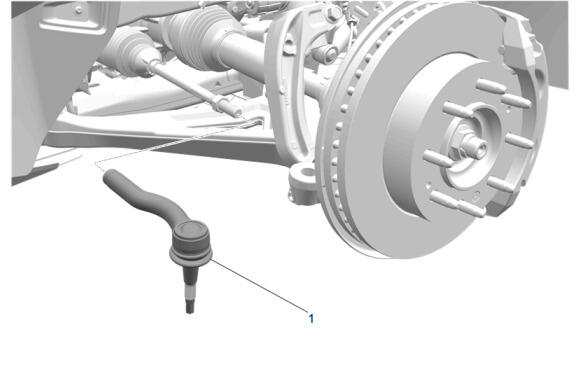

Steering Linkage Outer Tie Rod (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution .

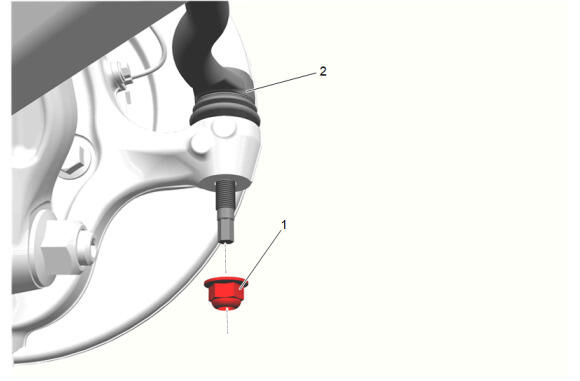

Steering Linkage Outer Tie Rod Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Tighten the steering linkage inner tie rod nut (1) during the front toe adjustment procedure.
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
