Removal Procedure

Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Inner Tie Rod Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

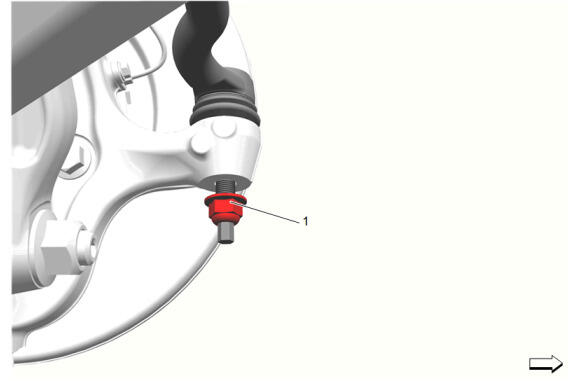

Steering Linkage Outer Tie Rod Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

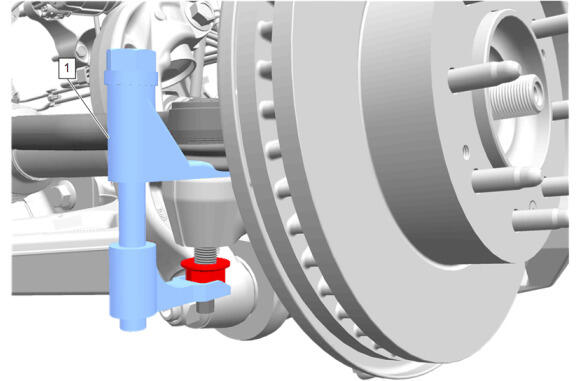

Using J-42188-B Ball Joint Separator (1), remove the steering linkage outer tie rod from the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Outer Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Outer Tie Rod (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Inner Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot Clamp- Outer (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

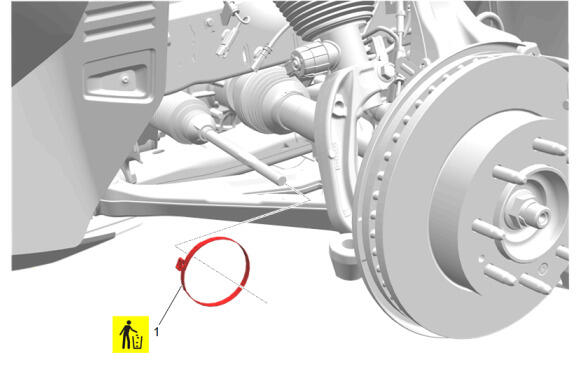

Steering Gear Boot Clamp- Inner (1) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

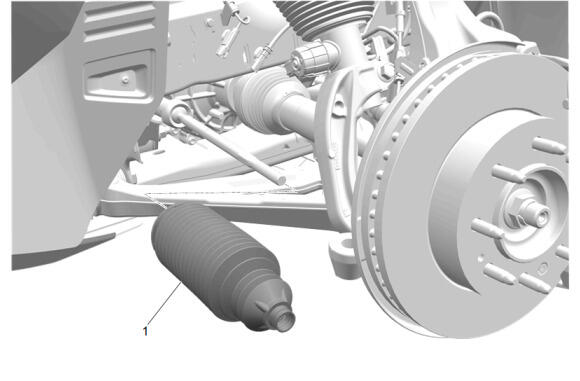

Steering Gear Boot (1) - Remove
