Shift Lock Control Wiring Schematics
>>
Shift Lock Control
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

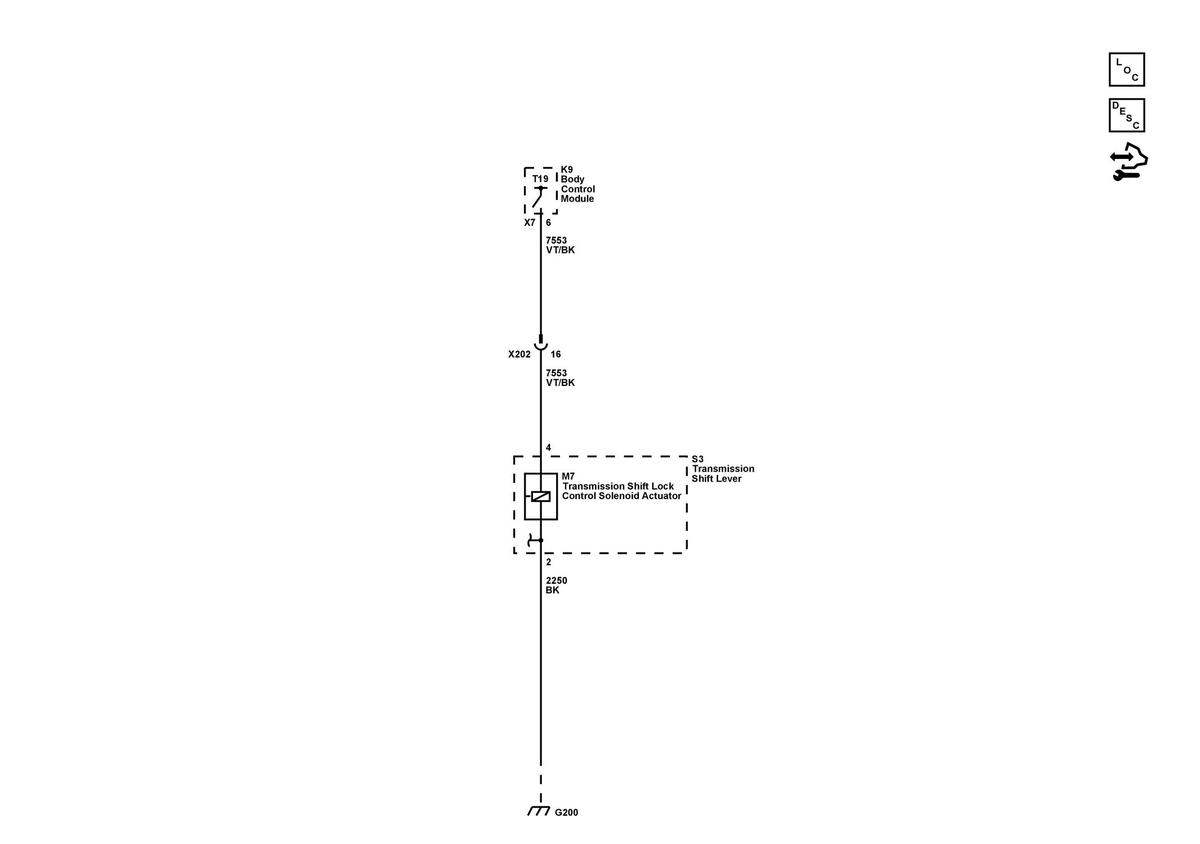

Shift Lock Control
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
