Installation Procedure

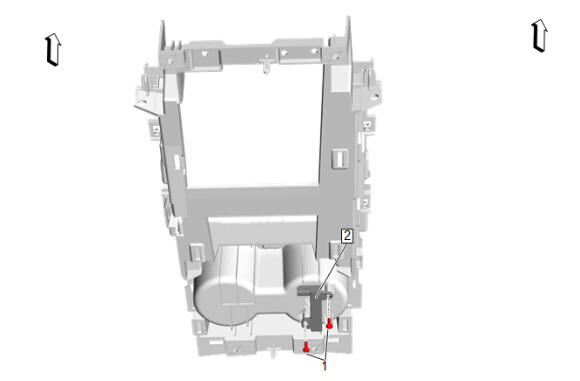

Low Frequency Console Antenna (2) - Install
- Low Frequency Console Antenna Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector and install the wiring harness retainers as necessary.

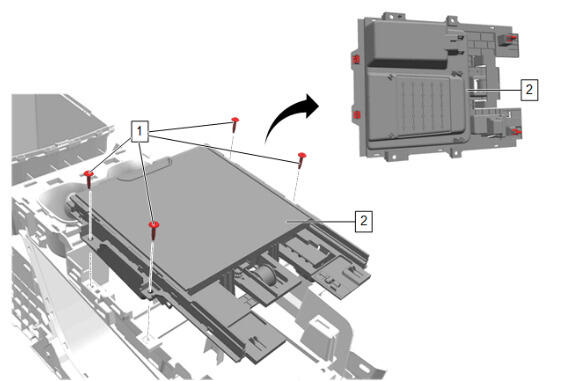

- Front Floor Console Compartment Trim Plate (2) - Install
- Front Floor Console Compartment Trim Plate Bolt. (1) - Install and tighten [4x] - Fastener Specifications
{ If equipped } Connect the electrical connector.

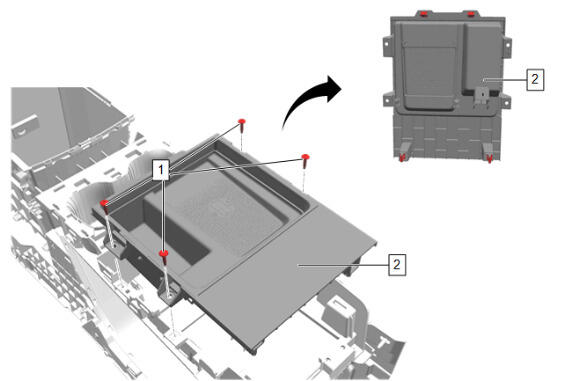

- { If equipped } Front Floor Console Front Compartment (2) - Install
- { If equipped } Front Floor Console Front Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications

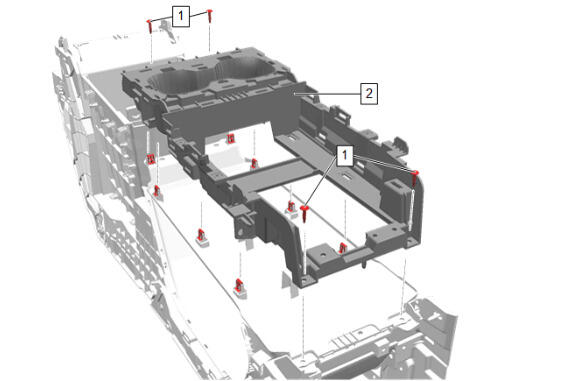

- Front Floor Console Compartment (2) - Install
- Front Floor Console Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect the electrical connector.
- Front Floor Console Compartment (2) - Install
- Front Floor Console Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications

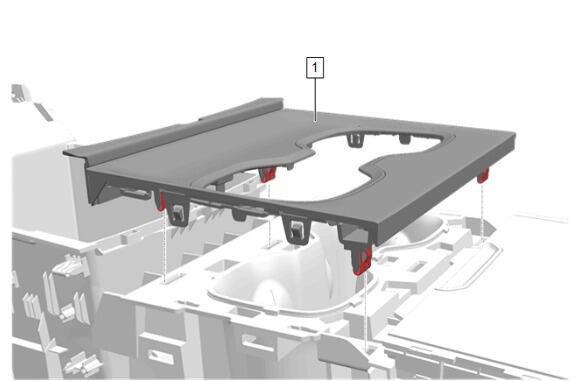

Front Floor Console Trim Plate (1) - Install

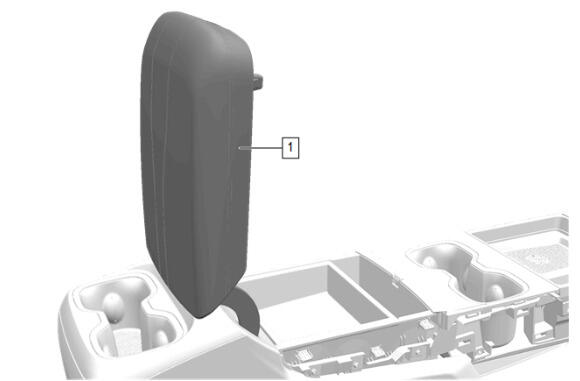

Close the front floor console armrest (1).
- Front Floor Console - Install - Front Floor Console Removal and Installation
CAUTION:
Refer to Fastener Caution .
NOTE:
During installation of the front floor console front compartment, ensure the front auxiliary cooling intermediate duct is properly engaged.
NOTE:
During installation of the front floor console front compartment, ensure the front auxiliary cooling intermediate duct is properly engaged.
NOTE:
During installation of the front floor console front compartment, ensure the front auxiliary cooling intermediate duct is properly engaged.
