Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

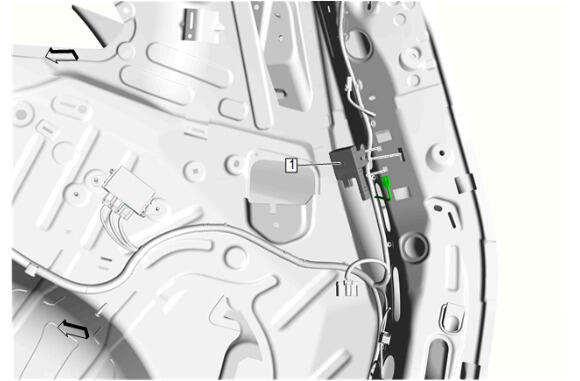

Remote Function Actuator Module (1) - Install
Ensure that the retaining tabs are fully secured.
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

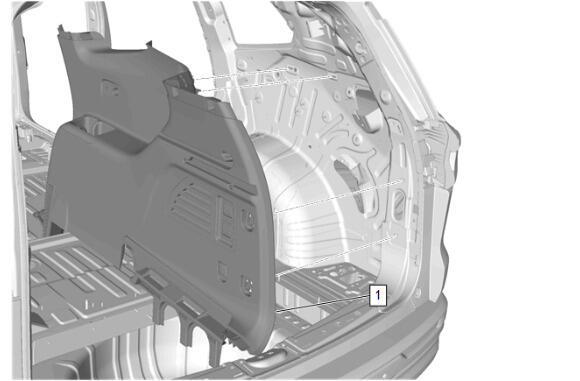

Quarter Lower Rear Trim Panel- Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

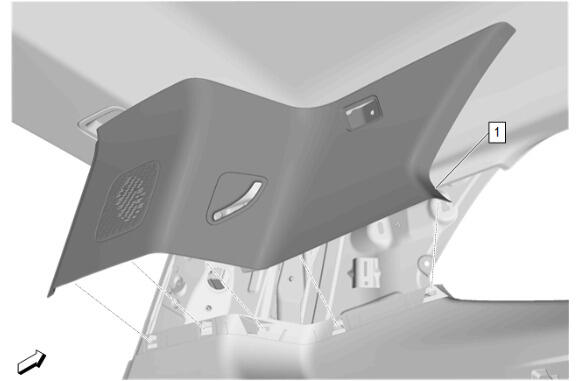

Body Rear Corner Upper Garnish Molding- Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

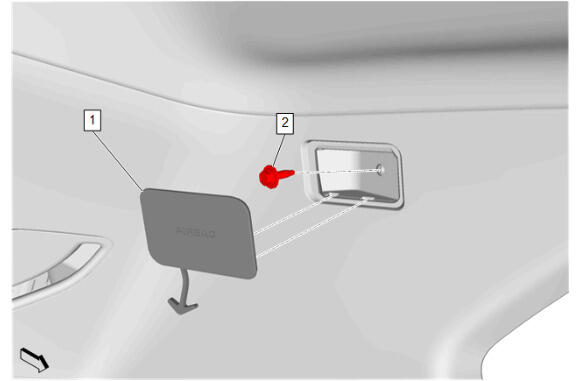

Body Rear Corner Upper Garnish Molding Bolt- Right Side (2) - Install and tighten - Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap- Right Side (1) - Install
Enable the SIR System. SIR Disabling and Enabling
