Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

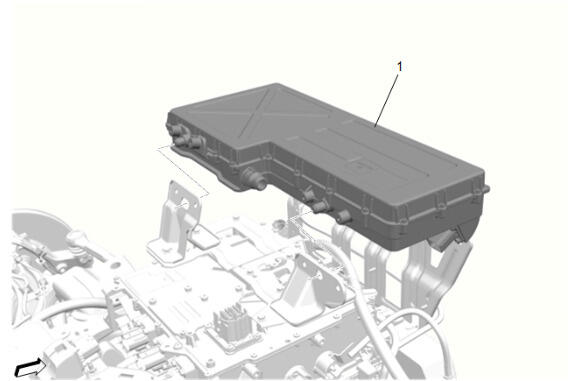

Battery Charger (1) - Install
Courtesy of GENERAL MOTORS COMPANY

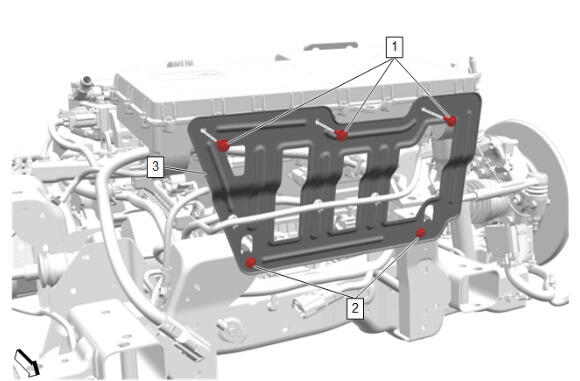

Drive Motor Battery Charger Bracket (3) - Move into position

CAUTION:

Drive Motor Battery Charger Ground Bolt (2) - Tighten [2x] - Fastener Specifications
Drive Motor Battery Charger Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

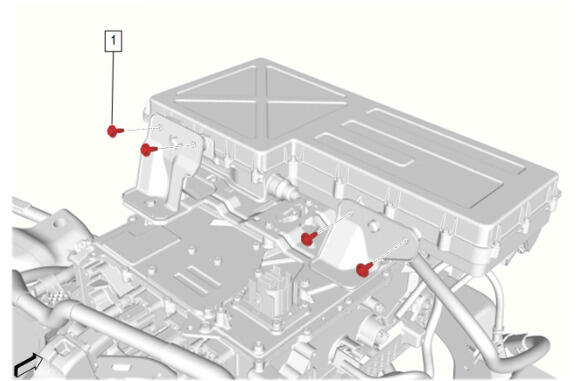

Drive Motor Battery Charger Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

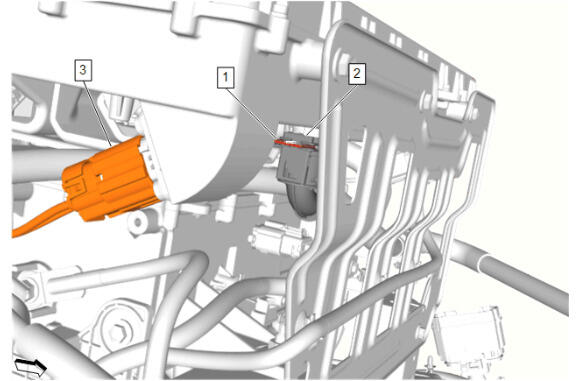

Connect the high voltage electrical connector. (3) High Voltage Connectors
Drive Motor Battery Charger Inlet Hose (2) @Battery Charger - Connect
Retainer (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

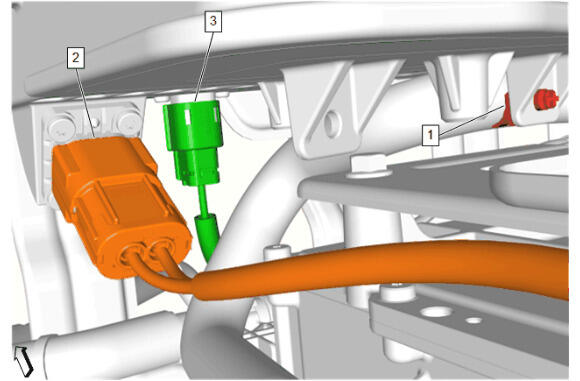

Connect the electrical connector. (3)
Connect the high voltage electrical connector. (2) High Voltage Connectors
Retainer (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

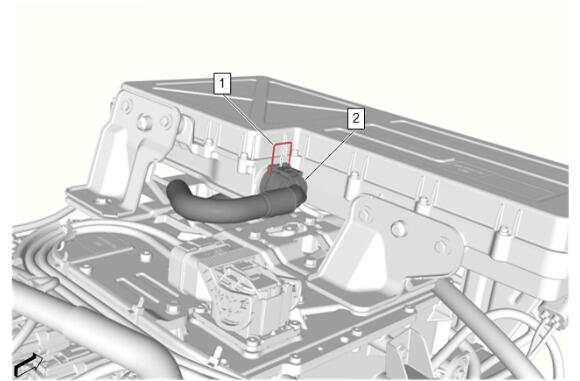

Drive Motor Power Distribution Control Module Hose (2) @Battery Charger - Connect
Retainer (1) - Engage
Rear Suspension Cradle - Install - Rear Suspension Cradle Removal and Installation
