Removal Procedure

Rear Suspension Cradle - Remove - Rear Suspension Cradle Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

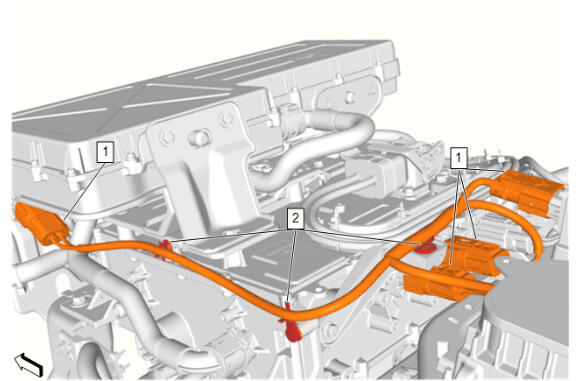

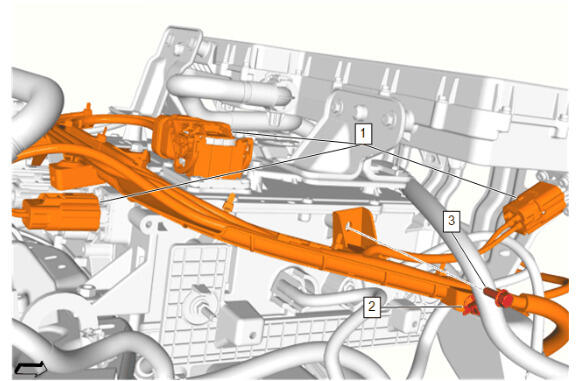

Disconnect the high voltage electrical connector and release the wiring harness retainers as necessary. (1, 2) High Voltage Connectors
Courtesy of GENERAL MOTORS COMPANY

High Voltage Battery Negative Cable (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Disengage
Drive Motor Power Distribution Control Module Hose (2) @Battery Charger - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Disengage
Disconnect the high voltage electrical connector. (2) High Voltage Connectors
Disconnect the electrical connector. (3)
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Disengage
Drive Motor Battery Charger Inlet Hose (2) @Battery Charger - Disconnect
Disconnect the high voltage electrical connector. (3) High Voltage Connectors
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Battery Charger Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Battery Charger Bolt (1) - Remove [3x]
Drive Motor Battery Charger Ground Bolt (2) - Loosen [2x]
Drive Motor Battery Charger Bracket (3) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Battery Charger (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

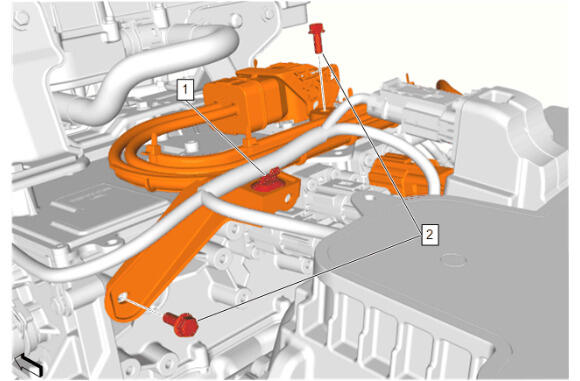

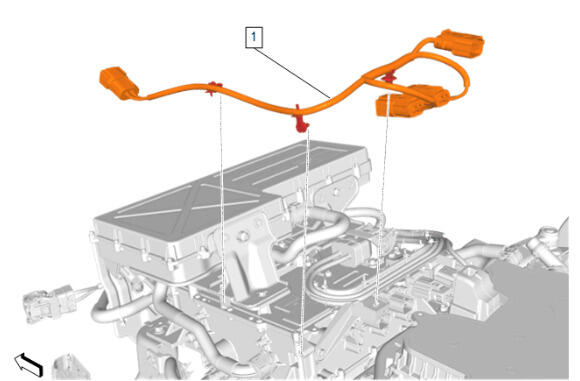

Disconnect the high voltage electrical connector and release the wiring harness retainers as necessary. (1, 2) High Voltage Connectors
Drive Motor Power Distribution Control Module Positive and Negative Cable Channel Bolt (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Power Distribution Control Module Positive and Negative Cable Channel Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The drive motor power distribution control module positive and negative cable (1) does not need to be completely removed.

Drive Motor Power Distribution Control Module Positive and Negative Cable (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Disengage
Auxiliary Battery Positive Cable Nut (2) - Remove
Battery Positive and Negative Cable (3) - Reposition
Courtesy of GENERAL MOTORS COMPANY

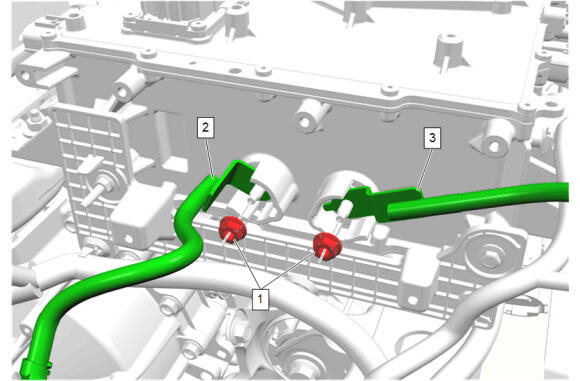

Power Line Communication Module Nut (1) - Remove [2x]
Starter Generator Negative Ground Cable (2) - Reposition
Starter Generator Positive Extension Cable (3) - Reposition
Courtesy of GENERAL MOTORS COMPANY

High Voltage Battery Coolant Inlet Secondary Hose Nut (1) - Remove
Rear Electric Drive Transmission Module Coolant Hose (2) - Reposition
Courtesy of GENERAL MOTORS COMPANY

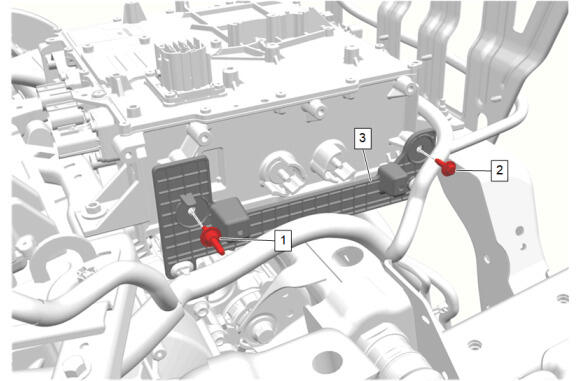

Chassis Rear Wiring Harness Bracket Bolt (1) - Remove
Chassis Rear Wiring Harness Bracket Bolt (2) - Remove
Chassis Rear Wiring Harness Bracket (3) - Reposition
Courtesy of GENERAL MOTORS COMPANY

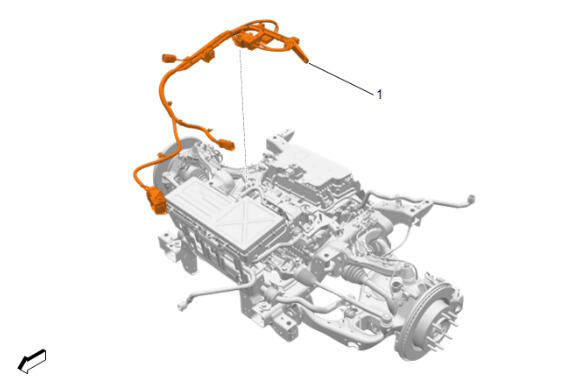

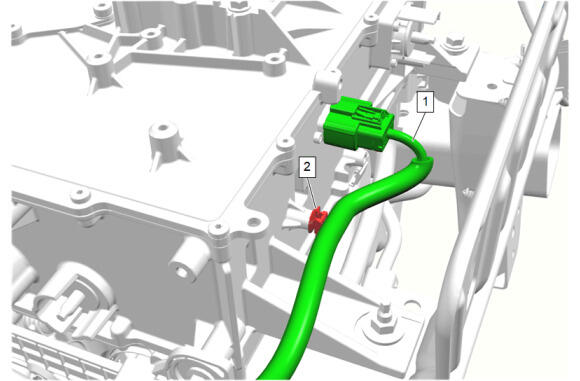

Chassis Rear Wiring Harness (1) @Battery Charger - Disconnect
Retainer (2) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

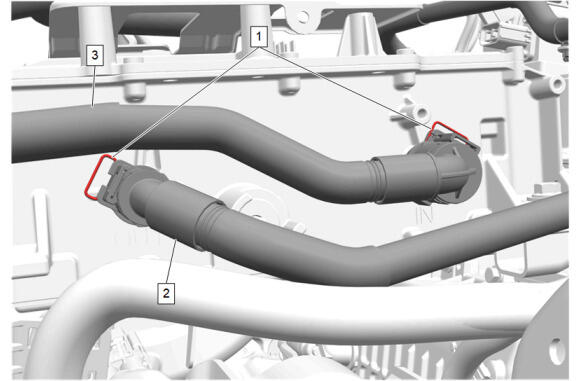

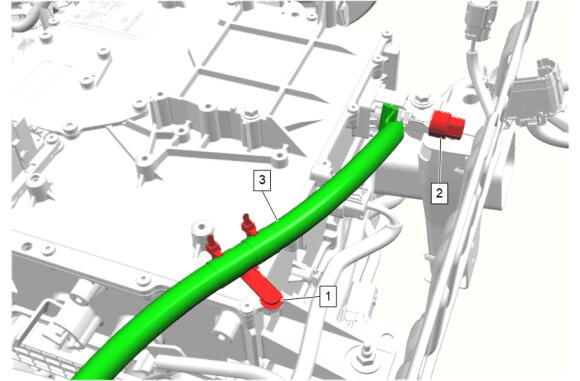

Retainer (1) - Disengage [2x]
Drive Motor Power Distribution Control Module Hose (2) @Battery Charger - Remove
Drive Motor Power Distribution Control Module Hose (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

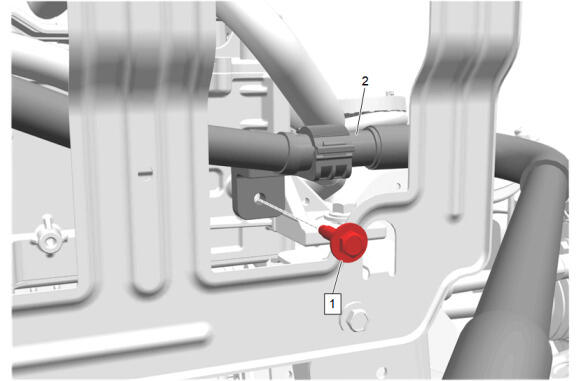

Drive Motor Battery Charger Inlet Hose Clip Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

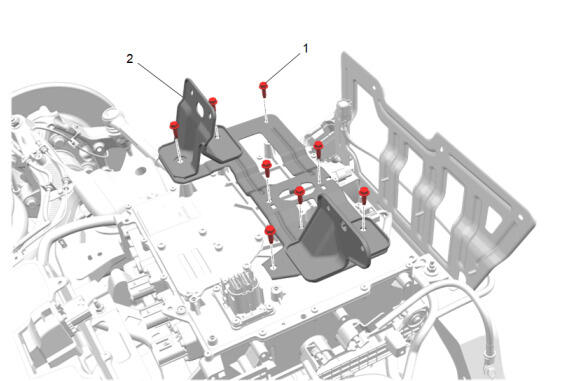

Drive Motor Battery Charger Bracket Bolt (1) - Remove [8x]
Drive Motor Battery Charger Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

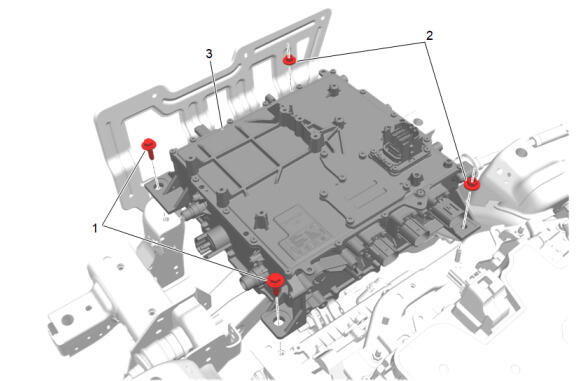

Drive Motor Power Distribution Control Module Bolt (1) - Remove [2x]
Drive Motor Power Distribution Control Module Nut (2) - Remove [2x]
Battery Charger (3) - Remove
