Repair Procedures: Inspection: Notes
- Disconnect the power latch and cinching connectors.
 Courtesy of
|

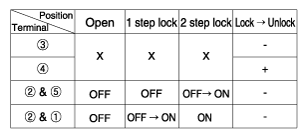

- Connect the power latch terminals directly to battery voltage (12V) and check that the motor operates smoothly.
 Courtesy of
|
 Courtesy of
|
- Connect the power cinching terminals directly to battery voltage (12V) and check that the motor operates smoothly.
 Courtesy of
|
 Courtesy of
|
