Repair Procedures: Inspection

  1. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

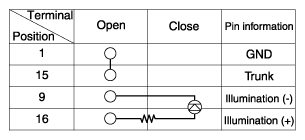

  2. Check for continuity between terminals (A) of the power trunk switch.
G11342508Courtesy of
G11342509Courtesy of
