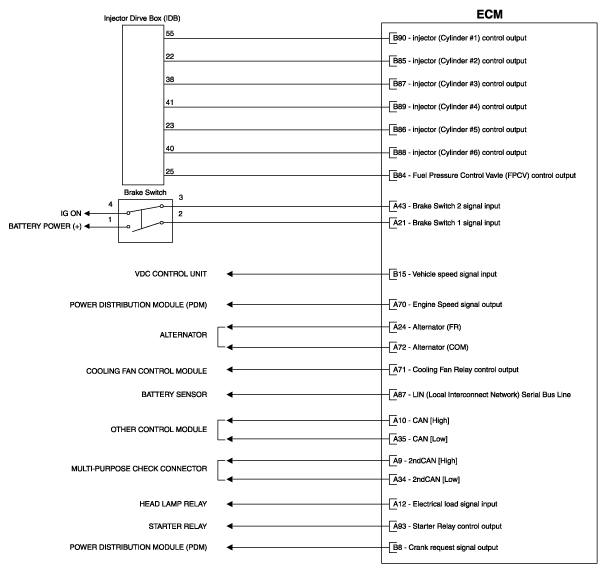

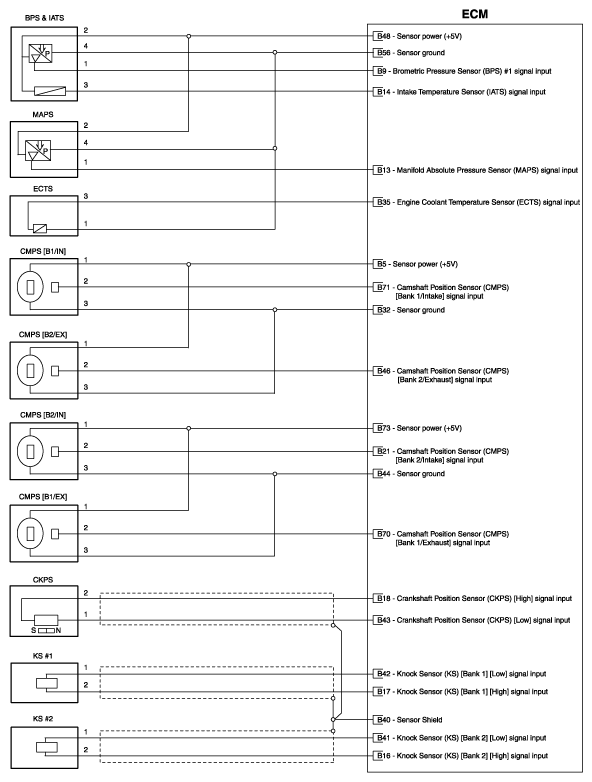

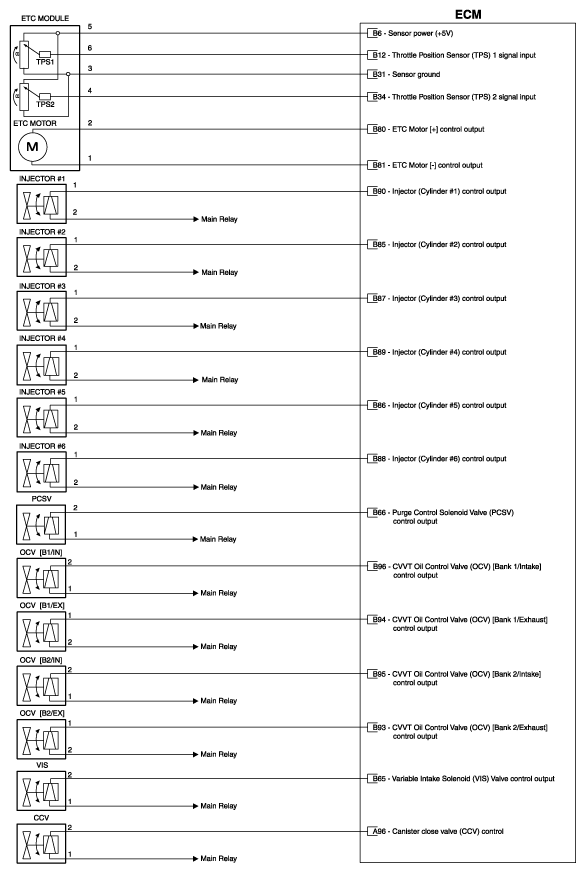

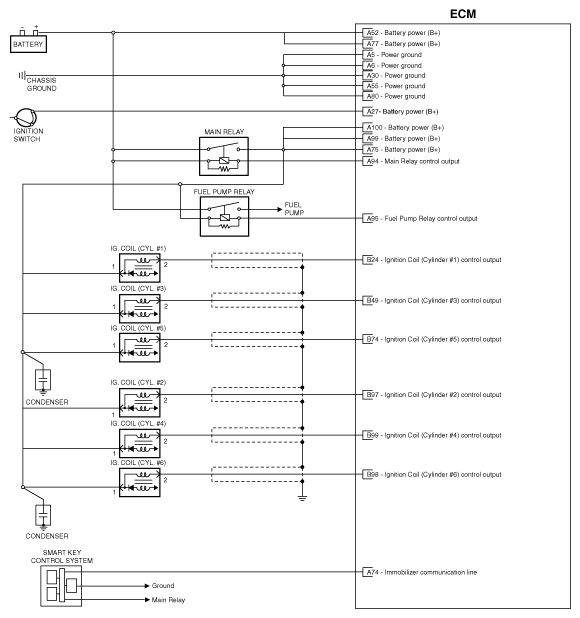

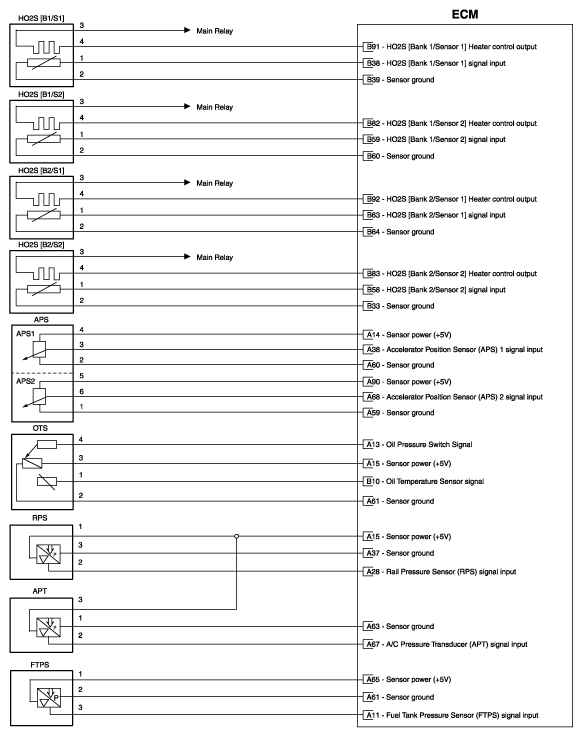

Circuit Diagram
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
