Repair Procedures: Removal

  1. IG Key "ON".
  2. Connect the GDS in the vehicle.

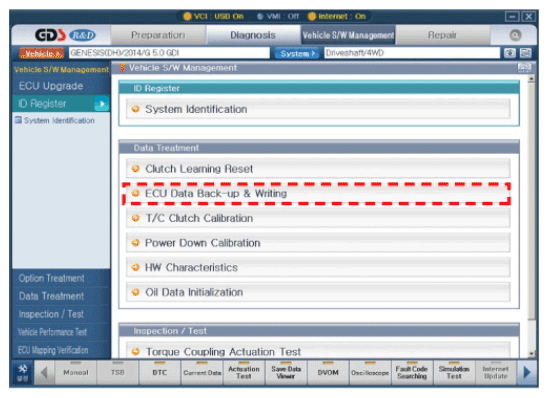

  3. To read the transfer case data in old ITA (ECU), select "ECU Data Back-up & Writing" service of GDS.
    G11340614
  4. IG key "OFF".
  5. Remove the under cover.

    (Refer to ENGINE ROOM UNDER COVER )

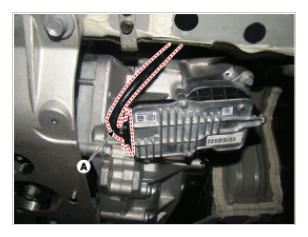

  6. Disconnect ITA (ECU) connector (A).
    G11340615

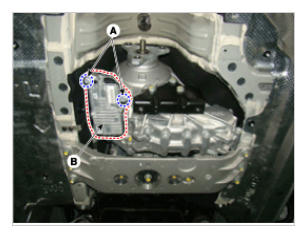

  7. Release 2 screws (A).
  8. Remove the 4WD ITA (ECU) (B).
G11340616
