Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the Fuel tank air filter.
(Refer to Emission Control System - "FUEL TANK AIR FILTER ")

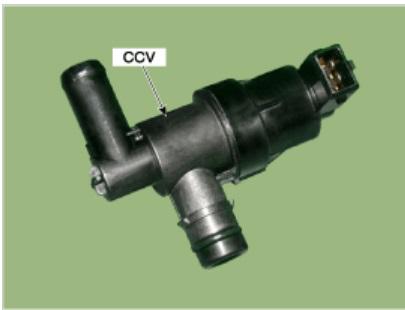

- Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in illustration below.
