Engine Control System - 5.0L
>>
Engine Control System
>>
Components and Components Location
>>
Components Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

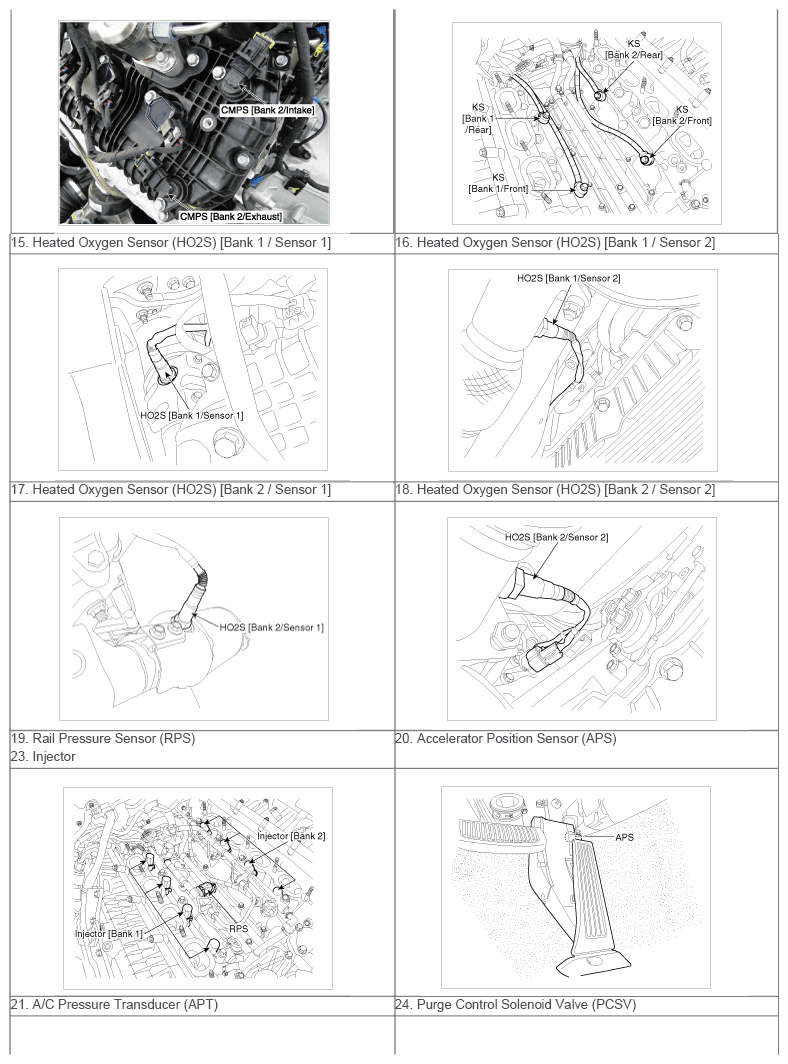

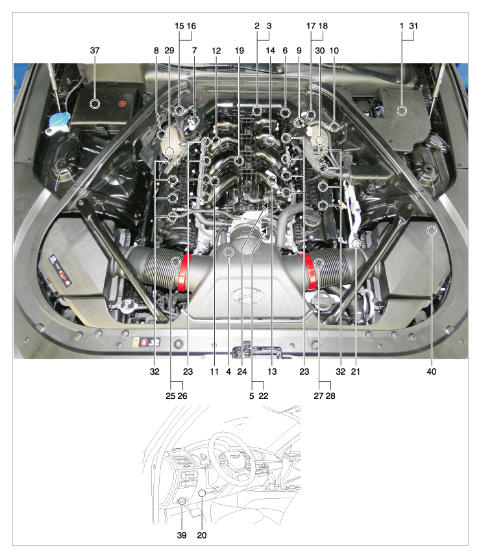

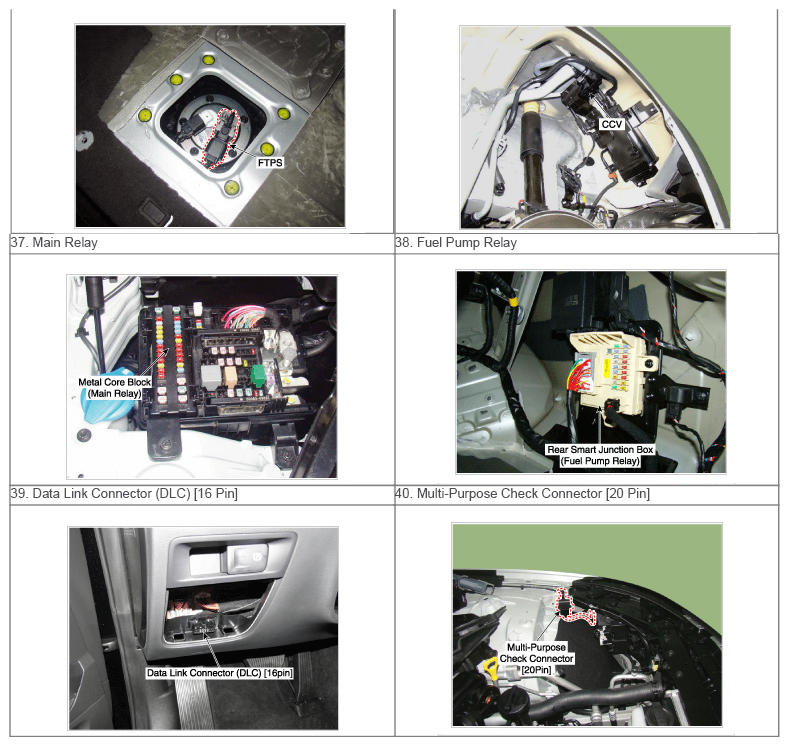

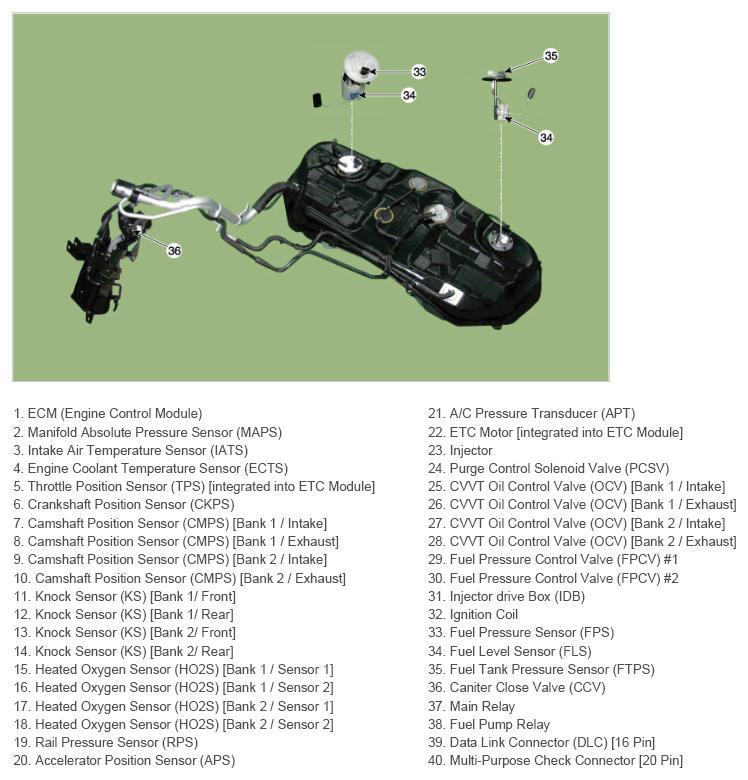

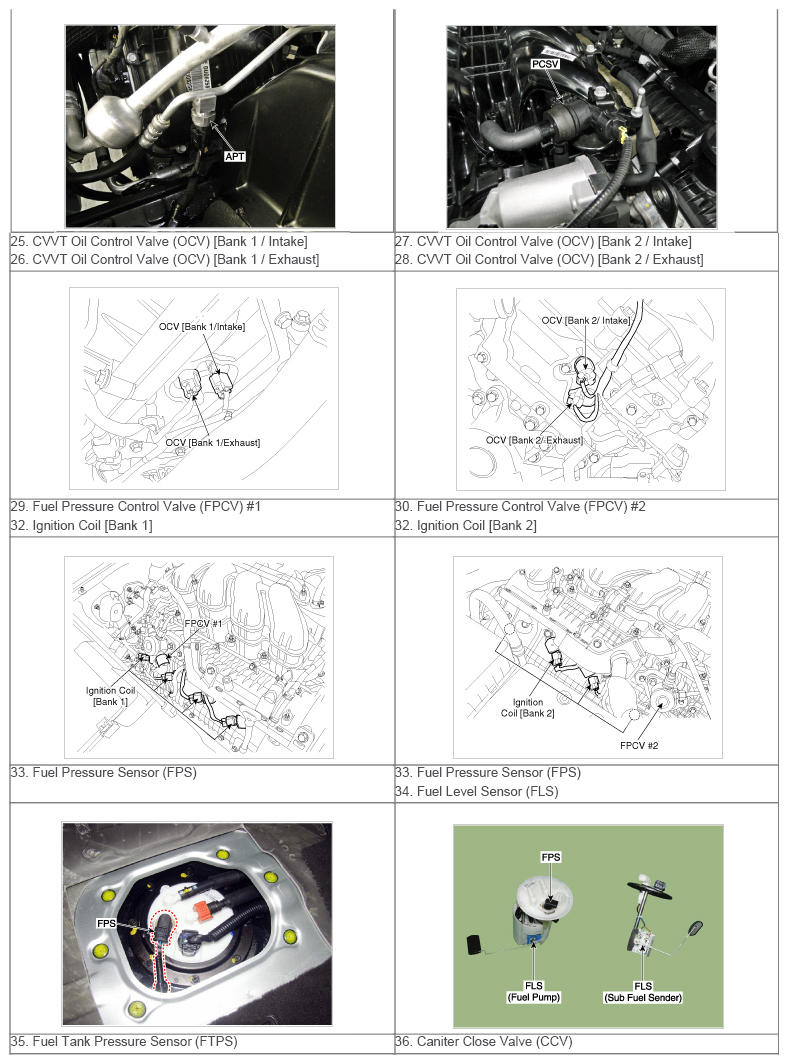

Components Location
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
