Component Location

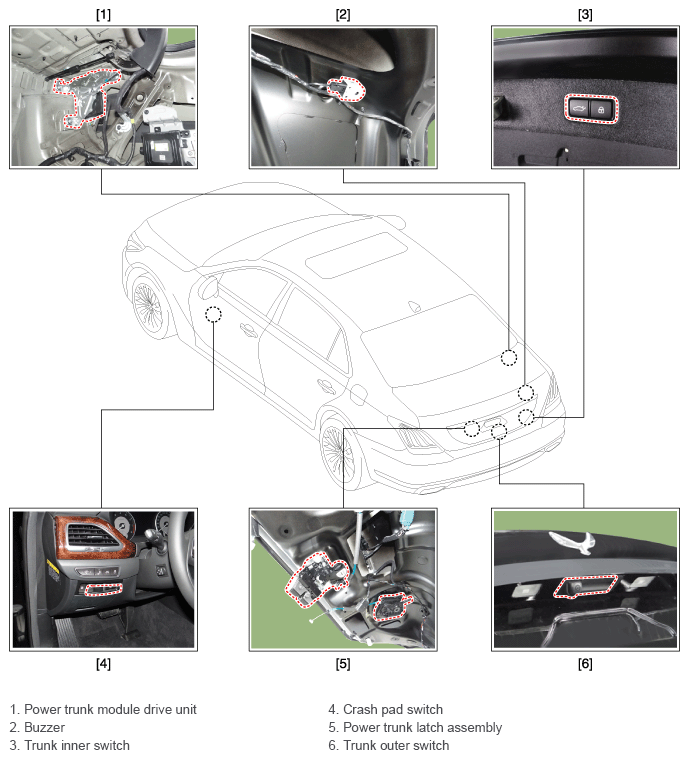

Fig 1: Locating Power Trunk Module Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
