Components and Components Location: Component

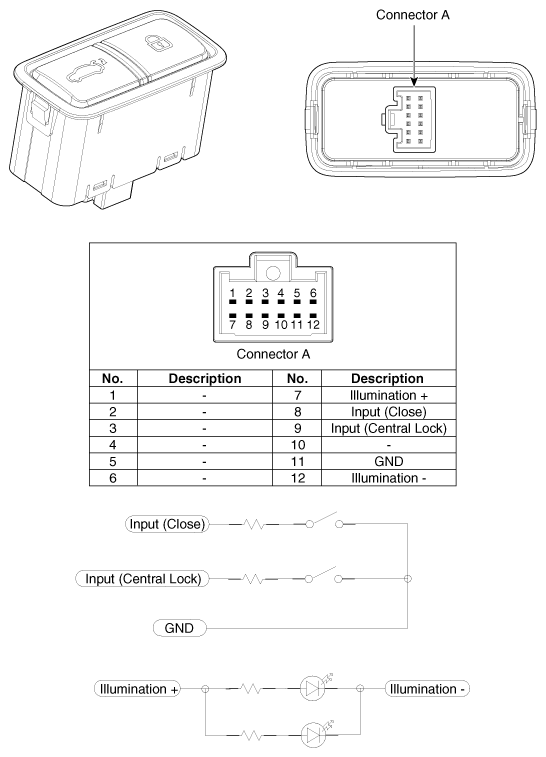

Fig 1: Locating Power Trunk Inner Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
