Repair Procedures: Inspection: Notes

  1. Disconnect the power latch and cinching connectors.
    Fig 1: Power Latch And Cinching Connectors Terminals
    G11419653Courtesy of HYUNDAI MOTOR AMERICA
  2. Connect the power latch terminals directly to battery voltage (12V) and check that the motor operates smoothly.
    Fig 2: Power Latch Terminals Continuity Diagram
    G11419654Courtesy of HYUNDAI MOTOR AMERICA

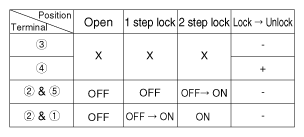

    Fig 3: Power Latch Terminals Continuity Chart
    G11419655Courtesy of HYUNDAI MOTOR AMERICA
  3. Connect the power cinching terminals directly to battery voltage (12V) and check that the motor operates smoothly.
Fig 4: Power Cinching Terminals Continuity Diagram
G11419656Courtesy of HYUNDAI MOTOR AMERICA

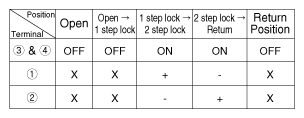

Fig 5: Power Cinching Terminals Continuity Chart
G11419657Courtesy of HYUNDAI MOTOR AMERICA
