Power Trunk Module (PTM)

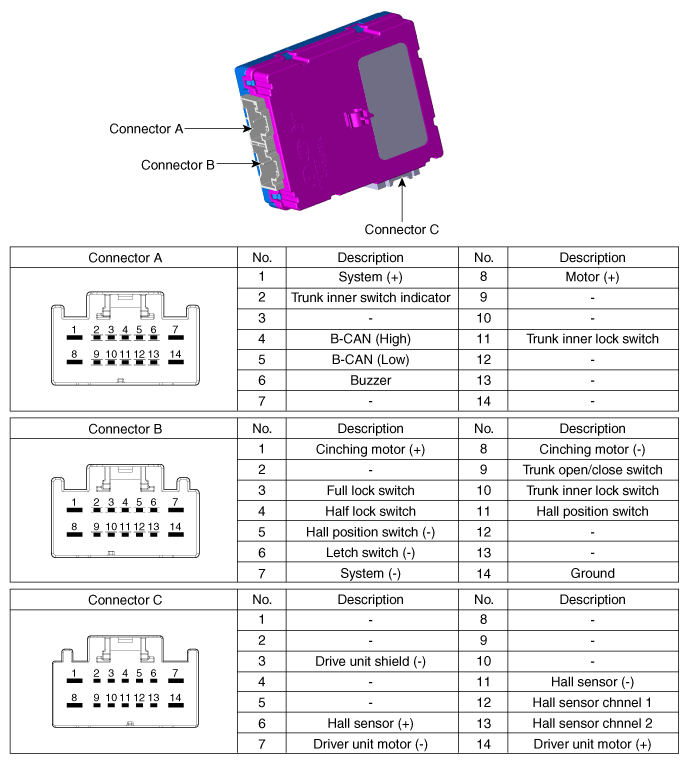

Fig 1: Locating Power Trunk Module (PTM) Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
