Accelerator Position Sensor (APS): Specifications: Specification

ACCELERATOR POSITION SENSOR (APS) SPECIFICATION

Pedal Position	Output Voltage (V) [Vref = 5.0V]
	APS1	APS2
C.T	0.7 - 0.8	0.33 - 0.43
W.O.T	3.98 - 4.22	1.93 - 2.17

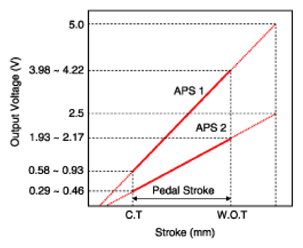

Fig 1: Accelerator Position Sensor Output Voltage Graph

Courtesy of HYUNDAI MOTOR AMERICA
