Repair Procedures: Removal

CVVT Oil Control Valve (Bank 1/Exhaust)

1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
2. Disconnect the OCV connector.
3. Remove the mounting bolt (B), and then remove the OCV from the engine.

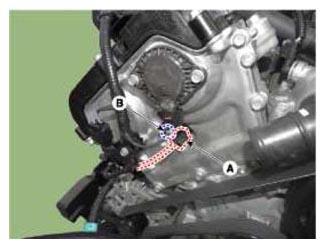

   Fig 1: Locating OCV Connector And Mounting Bolt (Bank 1/Exhaust)

   Courtesy of HYUNDAI MOTOR AMERICA

CVVT Oil Control Valve (Bank 2/Exhaust)

1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
2. Disconnect the OCV connector.
3. Remove the mounting bolt (B), and then remove the OCV from the engine.

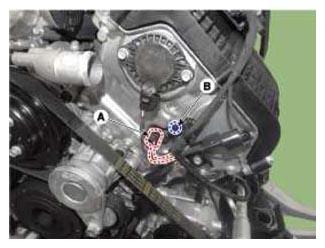

   Fig 2: Locating OCV Connector And Mounting Bolt (Bank 2/Exhaust)

   Courtesy of HYUNDAI MOTOR AMERICA
