Repair Procedures: Removal

WARNING:

DON'T remove the camshaft position sensor while the engine is running or right after engine is turned off. The part and engine oil is hot and can cause burns.

[Bank 1]

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Disconnect the camshaft position sensor connector (A).
Remove the installation bolt (B), and then remove the sensor.
[Bank 1/Intake]

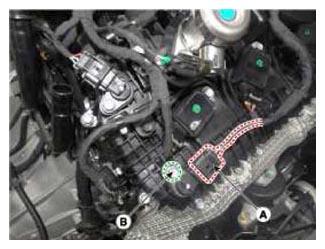

Fig 1: Locating Camshaft Position Sensor Connector (Bank 1/Intake)
Courtesy of HYUNDAI MOTOR AMERICA

[Bank 1/Exhaust]

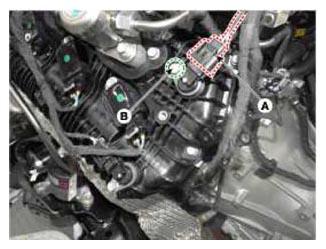

Fig 2: Locating Camshaft Position Sensor Connector (Bank 1/Exhaust)
Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2/Intake]

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Disconnect the camshaft position sensor connector (A).
Remove the installation bolt (B), and then remove the sensor.

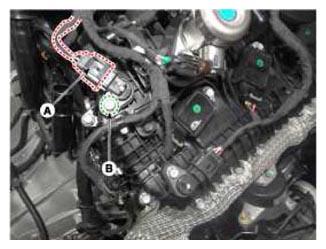

Fig 3: Locating Camshaft Position Sensor Connector (Bank 2/Intake)
Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2/Exhaust]

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Remove the noise barrier.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ").
Disconnect the camshaft position sensor connector (A).
Remove the installation bolt (B), and then remove the sensor.

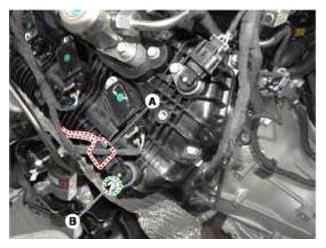

Fig 4: Locating Camshaft Position Sensor Connector (Bank 2/Exhaust)
Courtesy of HYUNDAI MOTOR AMERICA
