Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to Engine Mechanical System - "INTAKE & EXHAUST SYSTEM - 5.0L ")

  3. Disconnect the ETC module connector (A).
  4. Disconnect the coolant hoses (B).

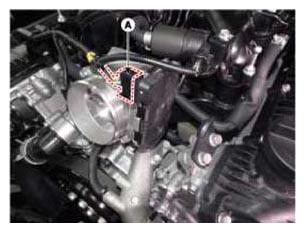

    Fig 1: Disconnecting ETC Module Connector
    G11404342Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the installation bolts (A), and then remove the ETC module (B) from the engine.

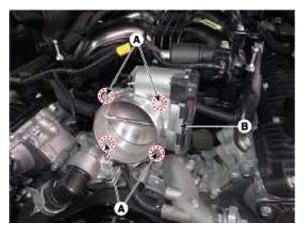

    Fig 2: Removing ETC Module From Engine
    G11404343Courtesy of HYUNDAI MOTOR AMERICA
