Repair Procedures: Removal

CAUTION:
  • When replacing the ECM, the vehicle equipped with the immobilizer must be performed in procedure below.

[In the Case of Installing Used ECM]

  1. Perform "ECM Neutral Mode" procedure with GDS. (Refer to "KEYLESS ENTRY & BURGLAR ALARM SYSTEM " in BE procedure)
  2. After finishing "ECM Neutral Mode", perform "Key Teaching" procedure with GDS. (Refer to "KEYLESS ENTRY & BURGLAR ALARM SYSTEM " in BE procedure)

[In the Case of Installing New ECM]

Perform "Key Teaching" procedure with GDS.

(Refer to "KEYLESS ENTRY & BURGLAR ALARM SYSTEM " in BE procedure)

CAUTION:
  • When replacing the ECM, the vehicle equipped with the smart key system (Button Start) must be performed procedure below.

[In the Case of Installing Used ECM]

  1. Perform "ECM Neutral Mode" procedure with GDS. (Refer to "KEYLESS ENTRY & BURGLAR ALARM SYSTEM " in BE procedure)
  2. After finishing "ECM Neutral Mode", insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM learns the smart key information automatically.

[In the Case of Installing New ECM]

Insert the Key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM learns the smart key information automatically.

  1. Turn Ignition Switch OFF and disconnect the Negative (-) Battery Cable.

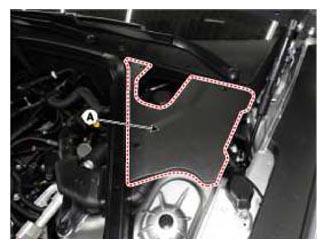

  2. Remove the ECM & TCM cover (A).
    Fig 1: Removing ECM & TCM Cover
    G11404328Courtesy of HYUNDAI MOTOR AMERICA

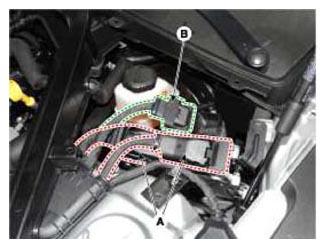

  3. Disconnect the ECM connector (A), and then disconnect the TCM connector (B).
    Fig 2: Disconnecting ECM Connector
    G11404329Courtesy of HYUNDAI MOTOR AMERICA

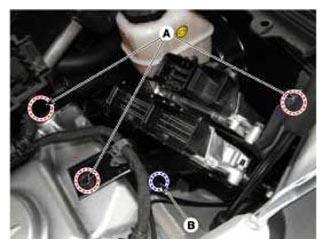

  4. Remove the ECM & TCM bracket installation bolts (A) and nut (B).
    Fig 3: Removing ECM & TCM Bracket Installation Bolts And Nut
    G11404330Courtesy of HYUNDAI MOTOR AMERICA

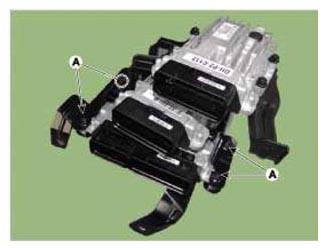

  5. After removing the installation nuts (A), remove the TCM (B) from the bracket.
    Fig 4: Removing Installation Nuts
    G11404331Courtesy of HYUNDAI MOTOR AMERICA

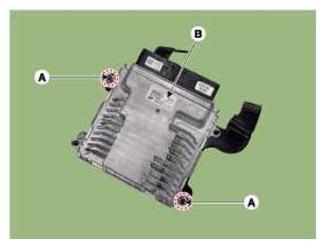

  6. After removing the installation nuts (A), remove the ECM (B) from the bracket.
    Fig 5: Removing ECM From Bracket
    G11404332Courtesy of HYUNDAI MOTOR AMERICA
