Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the engine coolant temperature sensor connector (A), and then remove the engine coolant temperature sensor (B).

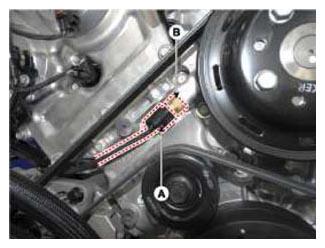

    Fig 1: Locating Engine Coolant Temperature Sensor Connector
    G11404356Courtesy of HYUNDAI MOTOR AMERICA
  3. Supplement the engine coolant.

    (Refer to Engine Mechanical System - "COOLING SYSTEM ")
