Circuit Diagram

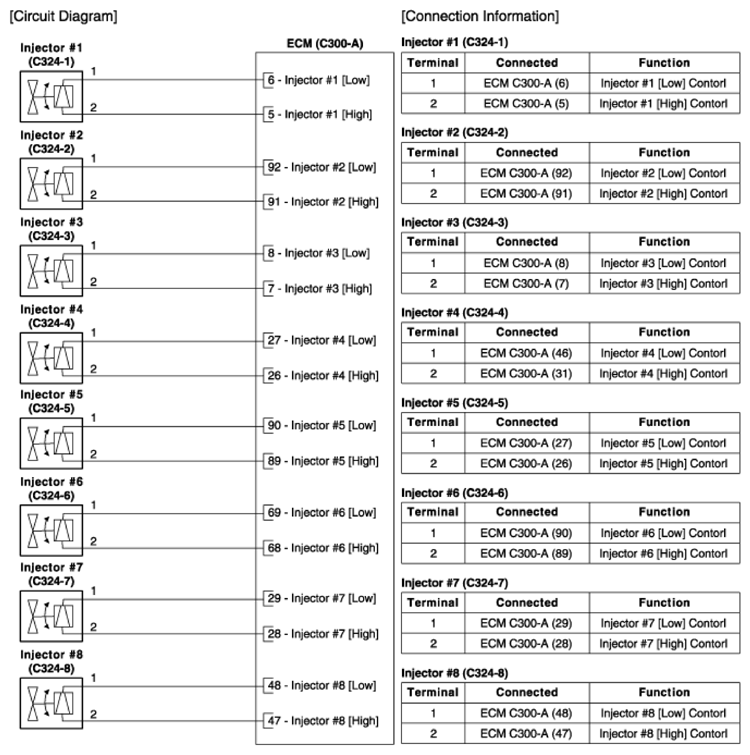

Fig 1: Injector Circuit Diagram
G11404400Courtesy of HYUNDAI MOTOR AMERICA

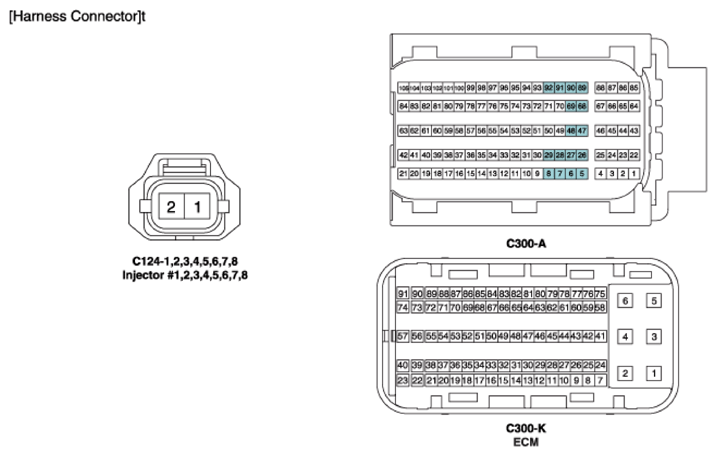

Fig 2: Injector Connector Terminals
G11404401Courtesy of HYUNDAI MOTOR AMERICA
