Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the delivery pipe assembly.

    (Refer to Fuel Delivery System - "DELIVERY PIPE ")

  3. Disconnect the knock sensor connector (A).

    [Bank 1]

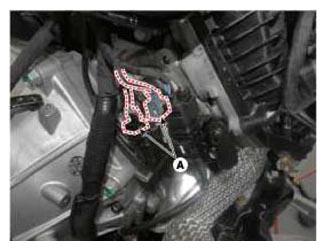

    Fig 1: Locating Knock Sensor Connector (Bank 1)
    G11404371Courtesy of HYUNDAI MOTOR AMERICA

    [Bank 2]

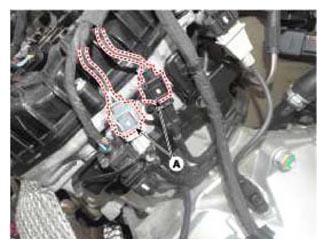

    Fig 2: Locating Knock Sensor Connector (Bank 2)
    G11404372Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the installation bolt (A), and then remove the sensor from the cylinder block.

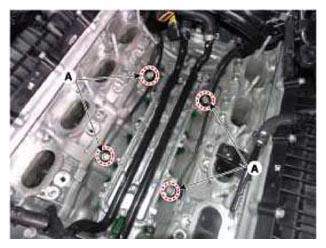

    Fig 3: Locating Sensor From Cylinder Block Installation Bolt
    G11404373Courtesy of HYUNDAI MOTOR AMERICA
