Repair Procedures: Removal

Variable Force Solenoid (VFS) [Bank 1/Intake]

1. Turn ignition switch OFF and disconnect the negative (-) battery terminal
2. Disconnect the VFS connector (A).
3. Remove the mounting bolt (B), and then remove the VFS from the engine.

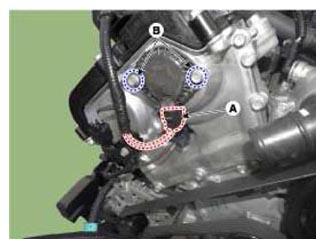

   Fig 1: Locating VFS Connector And Mounting Bolt (Bank 1/Intake)

   Courtesy of HYUNDAI MOTOR AMERICA

Variable Force Solenoid (VFS) [Bank 2/Intake]

1. Turn ignition switch OFF and disconnect the negative (-) battery terminal
2. Disconnect the VFS connector (A).
3. Remove the mounting bolt (B), and then remove the VFS from the engine.

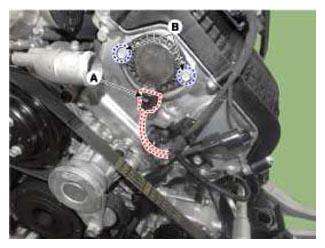

   Fig 2: Locating VFS Connector And Mounting Bolt (Bank 2/Intake)

   Courtesy of HYUNDAI MOTOR AMERICA
