Components Location of the Automatic Transmission

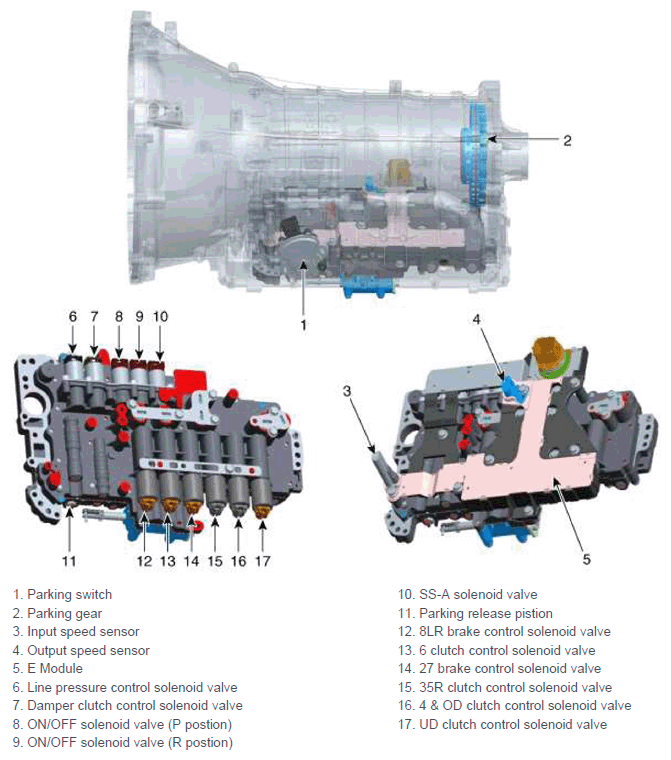

Fig 1: Locating Automatic Transmission Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
