Repair Procedures: Removal

Disconnect the negative (-) battery cable.
Remove the floor console.
(Refer to Body - "FLOOR CONSOLE ")

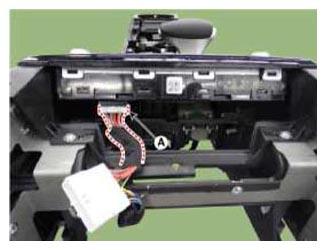

Disconnect the heater control unit connector (A).

Fig 1: Locating Heater Control Unit Connector
Courtesy of HYUNDAI MOTOR AMERICA

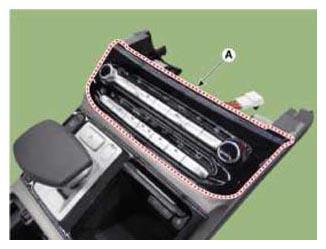

Remove the heater control unit (A).

Fig 2: Locating Heater Control Unit
Courtesy of HYUNDAI MOTOR AMERICA

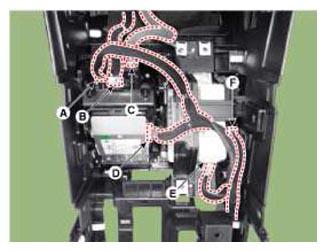

Disconnect the connector (A), (B), (C), (D), (E), (F).

Fig 3: Disconnecting Connector
Courtesy of HYUNDAI MOTOR AMERICA

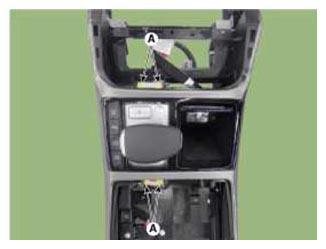

Remove the mounting bolts (A) of the electronic shift lever.

Fig 4: Locating Electronic Shift Lever Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

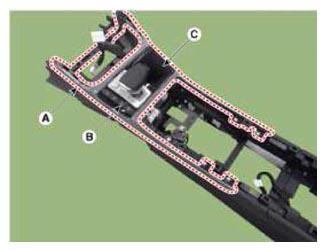

Remove the electronic shift lever (B), WPC (C) with the garnish (A).

Fig 5: Locating Electronic Shift Lever, WPC With Garnish
Courtesy of HYUNDAI MOTOR AMERICA

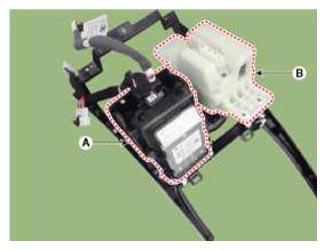

Remove the electronic shift lever (A), WPC (B) from the garnish.

Fig 6: Removing Electronic Shift Lever, WPC From Garnish

Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Electronic Shift Lever

Courtesy of HYUNDAI MOTOR AMERICA
