Repair Procedures: Removal

CAUTION:

When the solenoid valve Diagnostic Trouble Codes (DTC) is on, perform the following procedure to replace it.
Automatic transmission is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
Maintain clean condition so that foreign substance does not get into the automatic transmission.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transmission.
Automatic transmission fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the undercover. (Refer to ENGINE ROOM UNDER COVER - "Engine mechanical system")
Remove the E module connector (A).

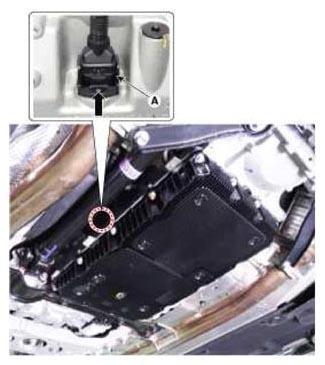

Fig 1: Removing E Module Connector
Courtesy of HYUNDAI MOTOR AMERICA
Perform automatic transmission fluid (ATF) drain and connect the drain plug.
Tightening Torque:

22.6 - 24.5N.m (2.3 - 2.5 kgf.m, 16.6 - 18.1 lb-ft)

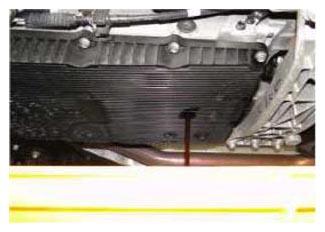

Fig 2: Draining Automatic Transmission Fluid
Courtesy of HYUNDAI MOTOR AMERICA
Unscrew all oil fan mounting bolts except for the edge bolts (A).
Tightening Torque:

9.8 - 11.8N.m (1.0 - 1.2 kgf.m, 7.2 - 8.2 lb-ft)

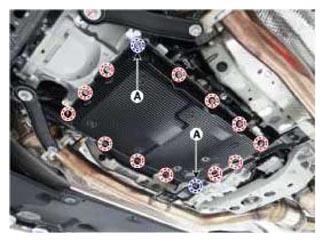

Fig 3: Locating Oil Fan Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Fix it to the bottom of the oil fan using a jack (B) and unscrew two edge bolts (A). Then, remove the oil fan.
NOTE:
- Disconnect the oil fan (C) on the oil filter side and remove it.

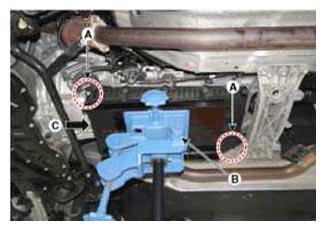

Fig 4: Disconnecting Oil Fan On Oil Filter Side
Courtesy of HYUNDAI MOTOR AMERICA
Unscrew the bolts and remove the valve body assembly (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

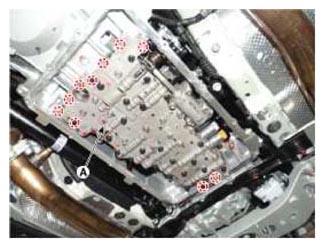

Fig 5: Locating Valve Body Assembly Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Place the valve body assembly in the oil fan.
Unscrew the bolts and remove the E module (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

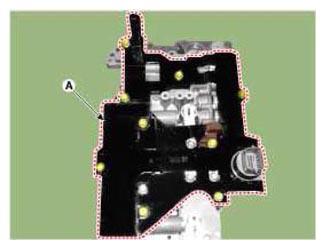

Fig 6: Locating E Module
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- After mounting the E-module, lightly tap the connector part (A) to insert the connector. Then, tighten the bolts.

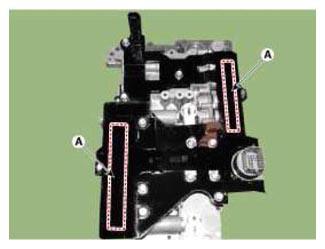

Fig 7: Locating E-Module Connector Part
Courtesy of HYUNDAI MOTOR AMERICA
Remove the bolts (A) of the indirect control solenoid valve support bracket.
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.2 lb-ft)

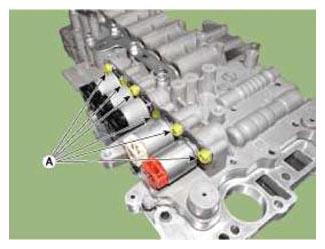

Fig 8: Locating Indirect Control Solenoid Valve Support Bracket Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the indirect control solenoid valve support bracket (A).

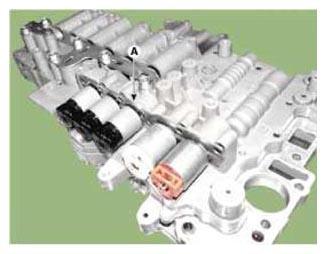

Fig 9: Locating Indirect Control Solenoid Valve Support Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Remove the line pressure control solenoid valve (A).

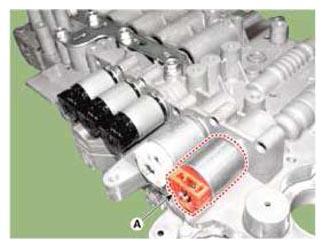

Fig 10: Locating Line Pressure Control Solenoid Valve
