Repair Procedures: Installation

Install the parking switch. When installing, tighten the inhibitor assembly mounting bolts (A) loosely to allow any necessary adjustments to be made.

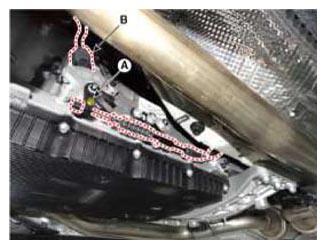

Fig 1: Locating Inhibitor Assembly Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Install the parking release lever (B).
Install the SST No.: 09480-D2100 or 0.1969in. (5mm) bolt after setting parking release lever (B) in the "P".

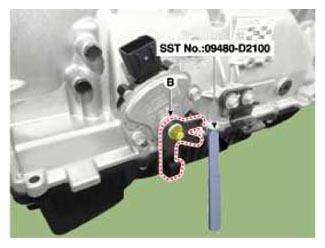

Fig 2: Installing Parking Release Lever
Courtesy of HYUNDAI MOTOR AMERICA
Tighten mounting nut (A) of the parking release lever to the specified torque.
Tightening Torque:

13.7 - 17.7 N.m (1.4 - 1.8 kgf.m, 10.1 - 13.0 lb-ft)
Tighten the bolt (B) to the specified torque.
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

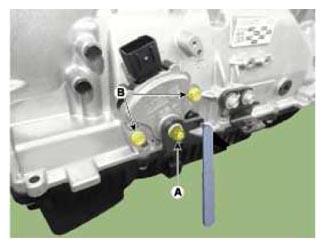

Fig 3: Tightening Mounting Nut Of Parking Release Lever
Courtesy of HYUNDAI MOTOR AMERICA
Remove the SST No.: 09480-D2100 or 0.1969in. (5mm) bolt.
Install the cross member (A).

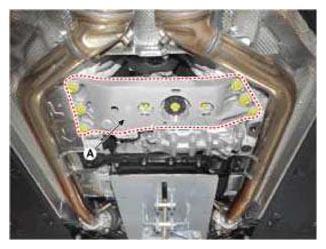

Fig 4: Installing Cross Member
Courtesy of HYUNDAI MOTOR AMERICA
Install the parking release cable by installing the fastener (A).
Connect the inhibitor switch connector (B).

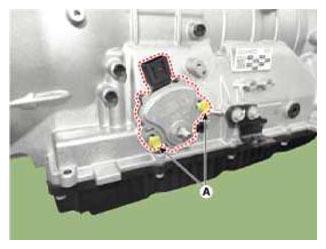

Fig 5: Connecting Inhibitor Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Connect the negative (-) battery cable.
