Repair Procedures: Installation

To install, reverse the removal procedure.
Input oil-pressure characteristics received backup in new TCM.

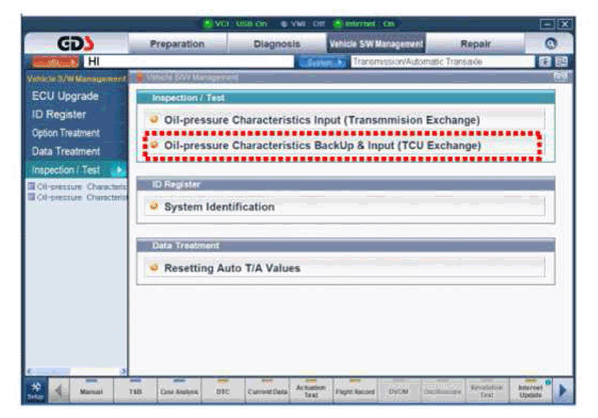

Fig 1: Screen Display - Input Oil-Pressure Characteristics Received Backup In TCM (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

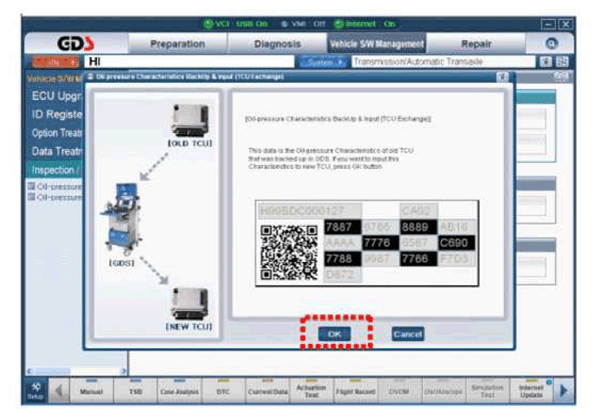

Fig 2: Screen Display - Input Oil-Pressure Characteristics Received Backup In TCM (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

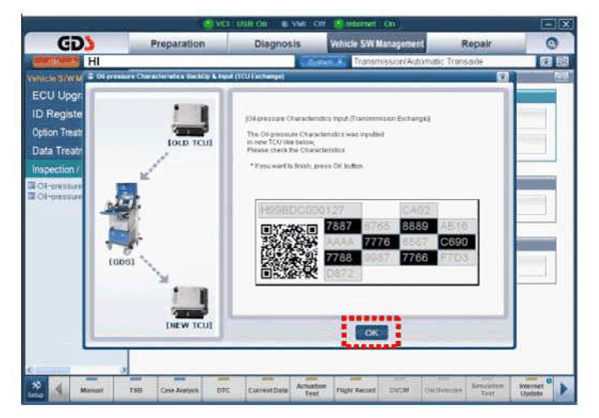

Fig 3: Screen Display - Input Oil-Pressure Characteristics Received Backup In TCM (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

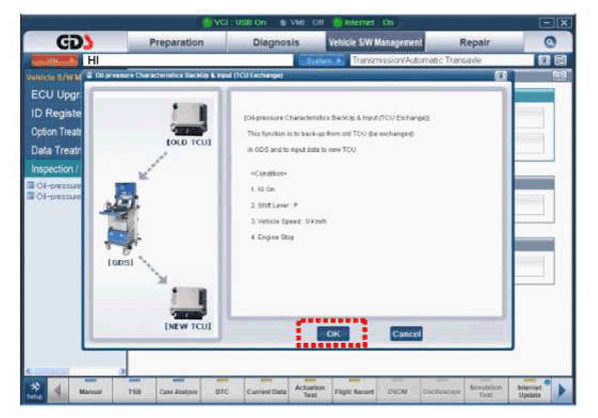

Fig 4: Screen Display - Input Oil-Pressure Characteristics Received Backup In TCM (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

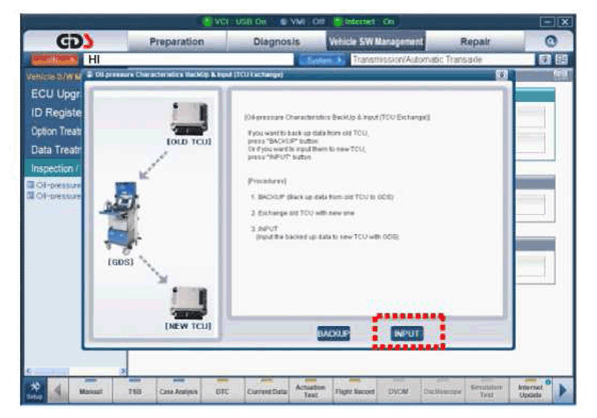

Fig 5: Screen Display - Input Oil-Pressure Characteristics Received Backup In TCM (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
