Repair Procedures: Removal

Backup oil-pressure characteristics of old TCM in the GDS.

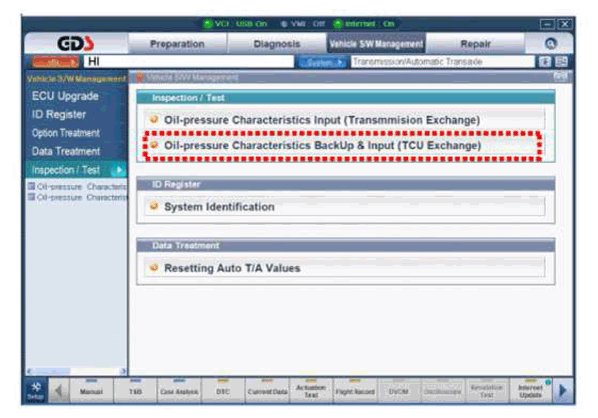

Fig 1: Screen Display - TCM Backup Oil-Pressure Characteristics In GDS (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

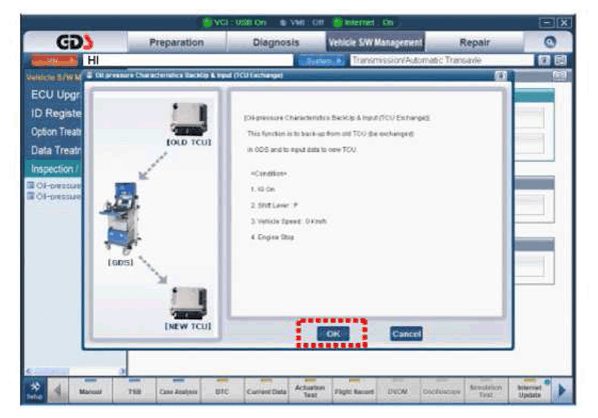

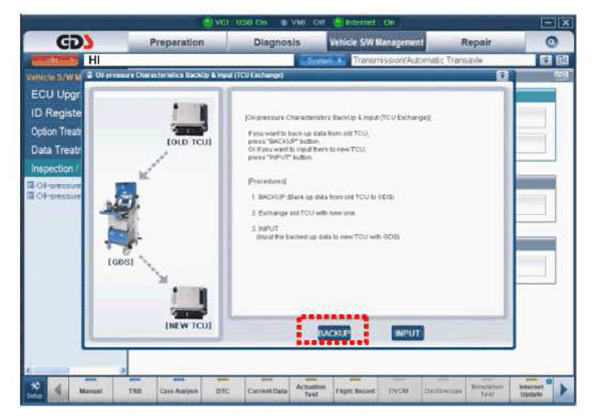

Fig 2: Screen Display - TCM Backup Oil-Pressure Characteristics In GDS (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

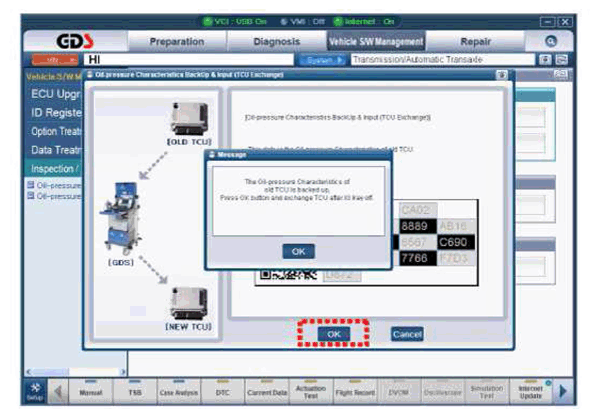

Fig 3: Screen Display - TCM Backup Oil-Pressure Characteristics In GDS (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Screen Display - TCM Backup Oil-Pressure Characteristics In GDS (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Turn ignition switch OFF.
Disconnect the negative (-) battery cable.

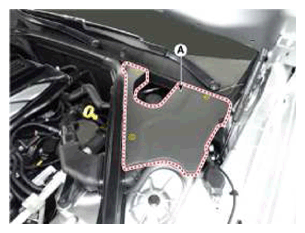

Remove the cover (A) after removing the clips.

Fig 5: Locating Cover
Courtesy of HYUNDAI MOTOR AMERICA

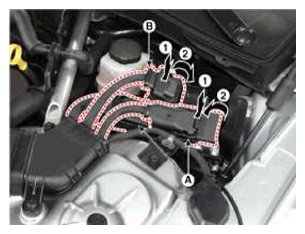

Disconnect the ECM connector (A) and TCM connector (B).

Fig 6: Disconnecting ECM Connector And TCM Connector
Courtesy of HYUNDAI MOTOR AMERICA

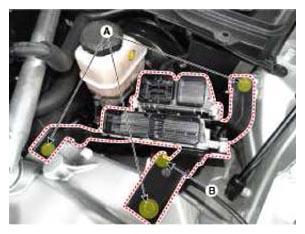

Remove the TCM & ECM after removing the bolts (A) and nut (B).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Fig 7: Locating TCM/ECM Bolts And Nut
Courtesy of HYUNDAI MOTOR AMERICA
Remove the TCM (B) after removing the nuts (A).

Fig 8: Locating TCM Nuts

Courtesy of HYUNDAI MOTOR AMERICA
