[Gasoline 3.3]

CAUTION:

Replace O-Ring (A) before reinstalling the AWD ITA (ECU).

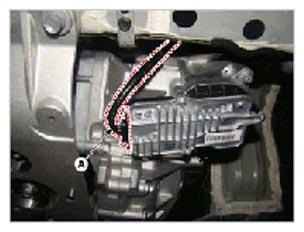

Fig 1: Replacing O-Ring (Gasoline 3.3)
Courtesy of HYUNDAI MOTOR AMERICA

Check the connector pin for erosion.
Install the new 4WD ITA (ECU) (B).
Tighten the fixings to 22 Nm (2.2 kgf.m, 15.9 lb-lf).

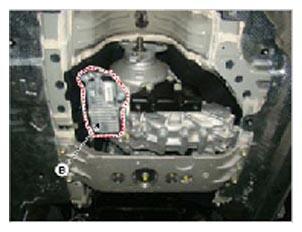

Fig 2: Locating New 4WD ITA (ECU)
Courtesy of HYUNDAI MOTOR AMERICA
Check the connector pin for erosion.
Connect vehicle wires and 4WD ITA (ECU) connector (A).
CAUTION:
- If the ITA is changed it should be paid attention to the position of the dihedron (interface between actuator shaft of the ITA to the transfer case).

  Fig 3: Connecting Vehicle Wire And ITA Connector
  Courtesy of HYUNDAI MOTOR AMERICA
Install the under cover.
(Refer to Engine mechanical system - "ENGINE ROOM UNDER COVER ")
IG Key "ON" Engine OFF.
To write the transfer case data in new ITA, select "ECU Data Back-up & Writing" service of GDS.

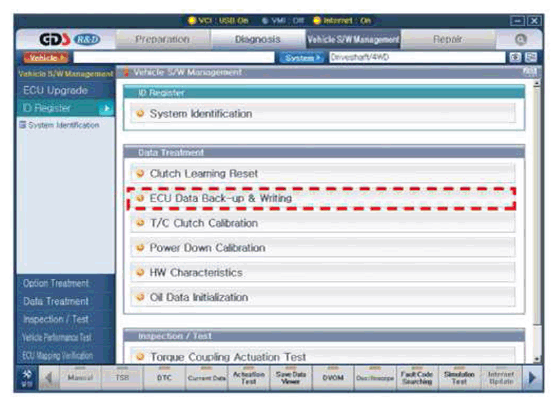

Fig 4: Screen Display - ECU Data Back-Up & Writing (Gasoline 3.3)
Courtesy of HYUNDAI MOTOR AMERICA
Write vehicle variant code: HI

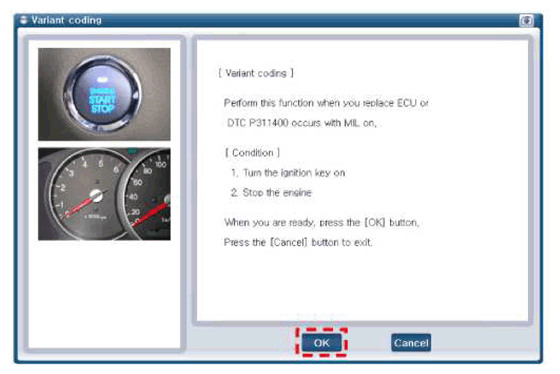

Fig 5: Screen Display - Vehicle Variant Code (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

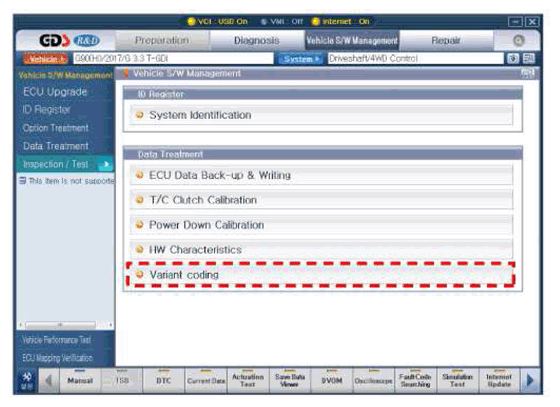

Fig 6: Screen Display - Vehicle Variant Code (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

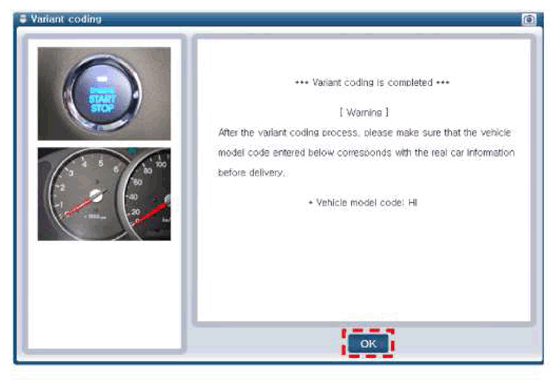

Fig 7: Screen Display - Vehicle Variant Code (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
To perform the initial calibration, select "T/C Clutch Calibration" service of GDS.

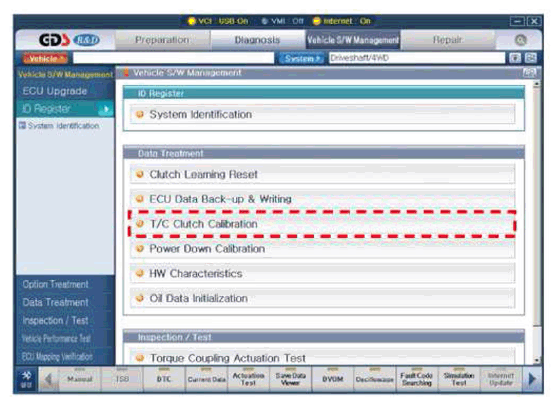

Fig 8: Screen Display - T/C Clutch Calibration (Gasoline 3.3)
Courtesy of HYUNDAI MOTOR AMERICA
IG Key "OFF", and wait for 10 seconds or so.
IG Key "ON", engine "OFF".
Check if transfer case data are written correctly using "ECU Data Back-up & Writing" service of GDS.
Check DTCs, for pending DTC, and if there are any pending DTCs, delete them.
If there are still pending DTCs or incorrect written data, turn IG off and repeat the whole procedure from No. 5.
No DTC's available and correct backup data written, service procedure is successfully done.
