Wheel Run-Out

  1. Jack up the vehicle and support it with jack stands.

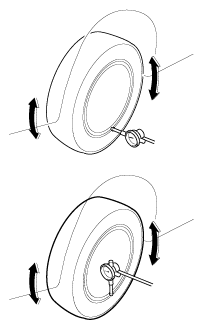

  2. Measure the wheel run-out with a dial indicator as illustrated.
  3. Replace the wheel if the wheel runout exceeds the limit.
    Limit Radial Axial
    Run-Out mm Aluminum 0.3 0.3
    G12666222Courtesy of HYUNDAI MOTOR AMERICA
