Components Location

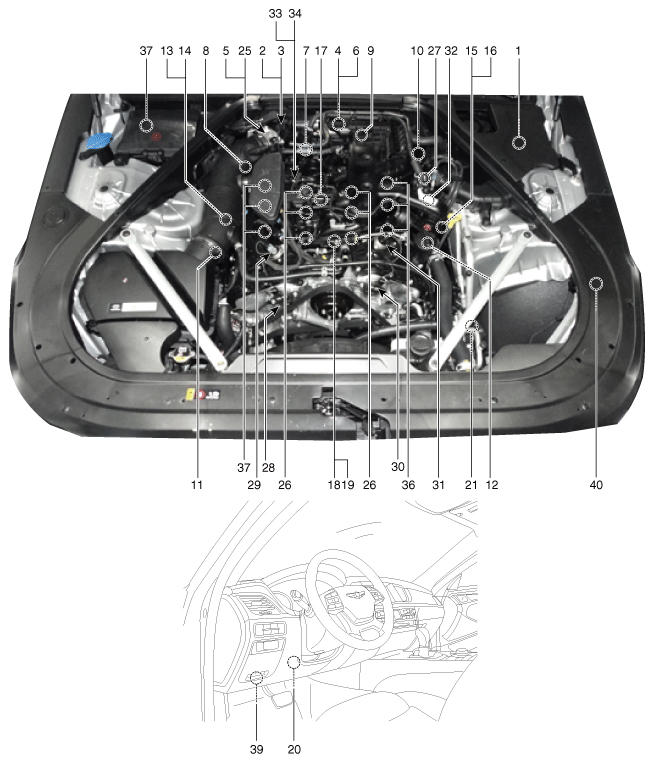

G12657566Courtesy of HYUNDAI MOTOR AMERICA

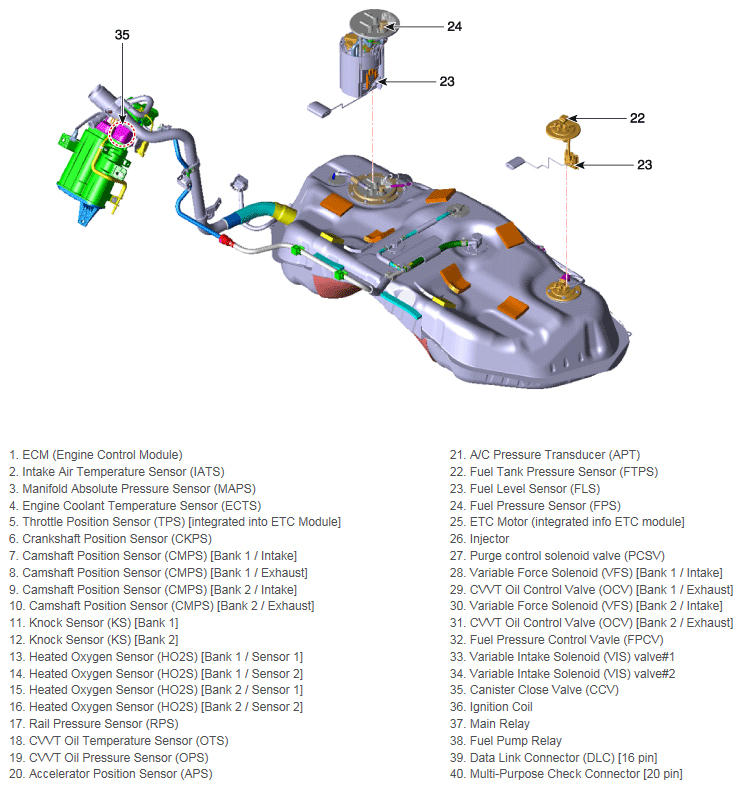

G12657567Courtesy of HYUNDAI MOTOR AMERICA

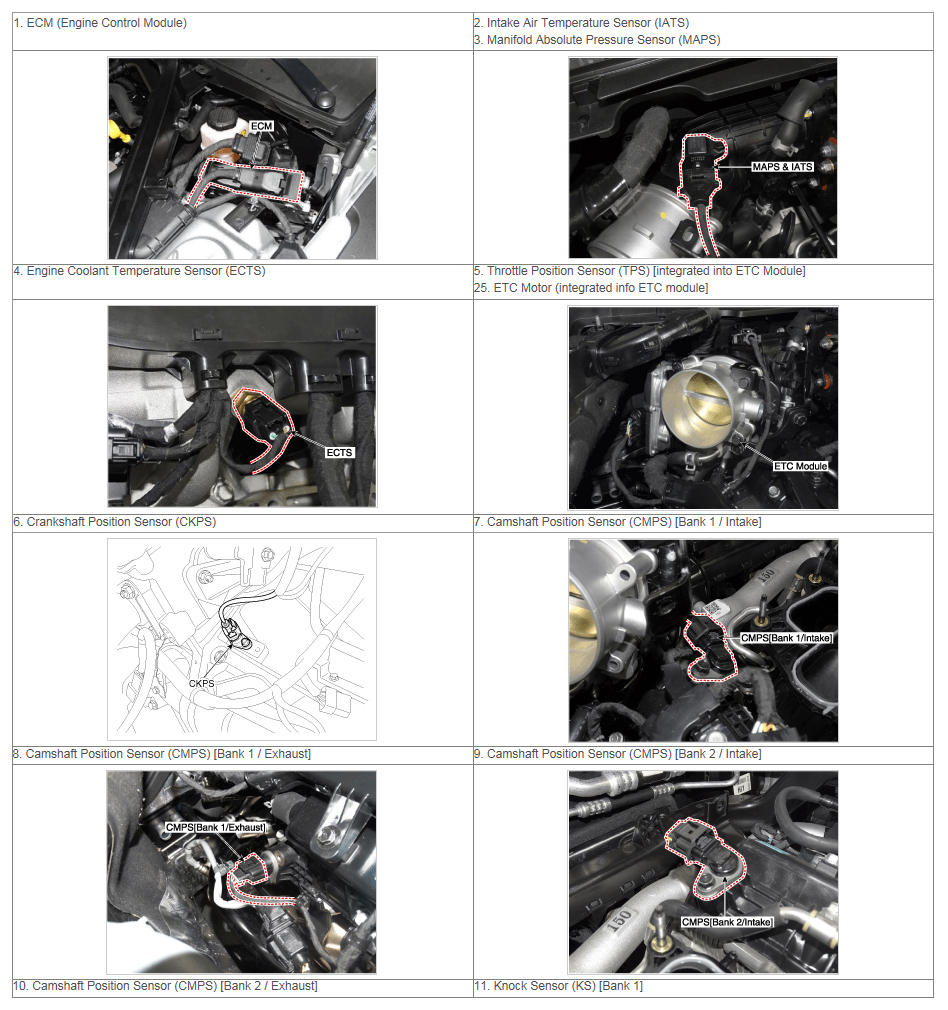

G12657568Courtesy of HYUNDAI MOTOR AMERICA
G12657570Courtesy of HYUNDAI MOTOR AMERICA

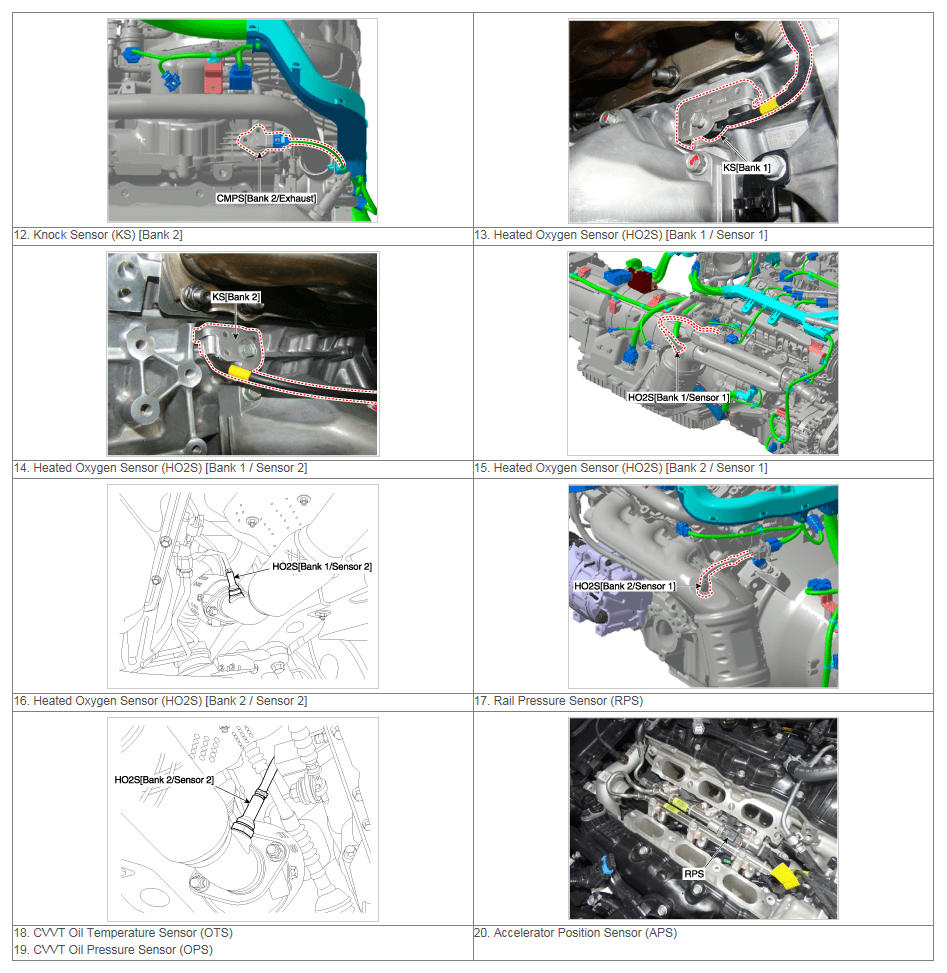

G12657572Courtesy of HYUNDAI MOTOR AMERICA

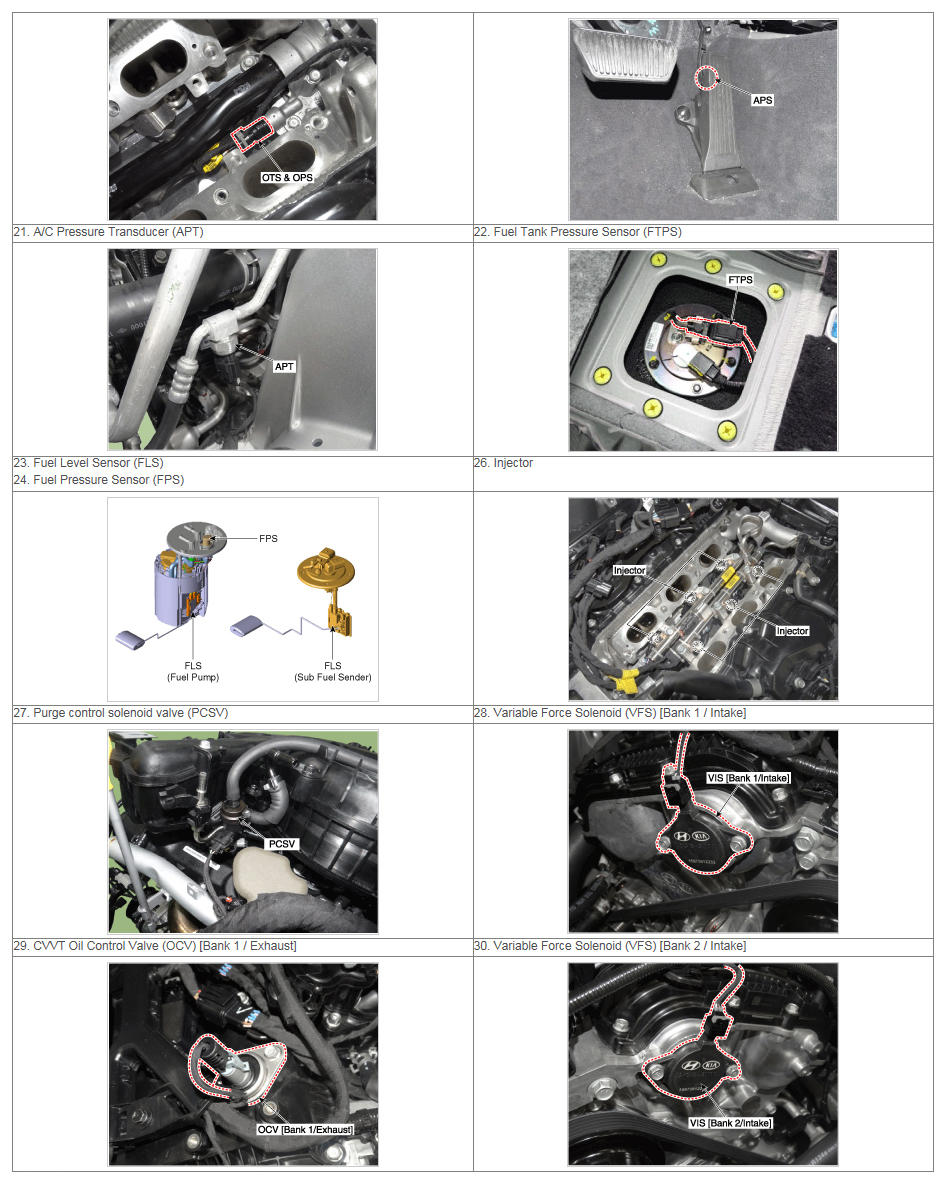

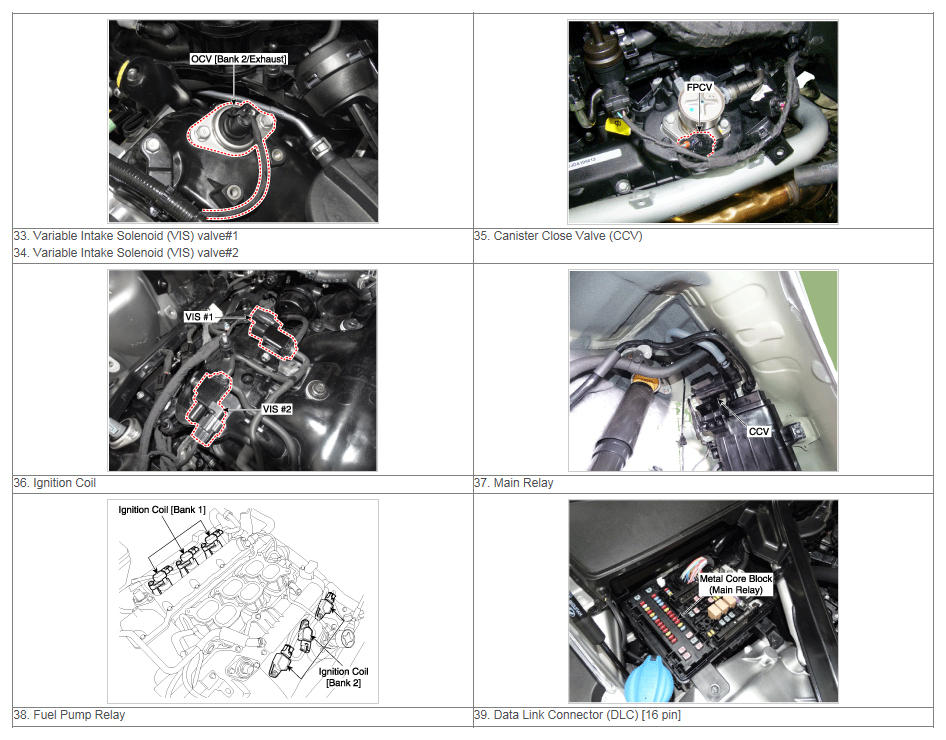

G12657574Courtesy of HYUNDAI MOTOR AMERICA

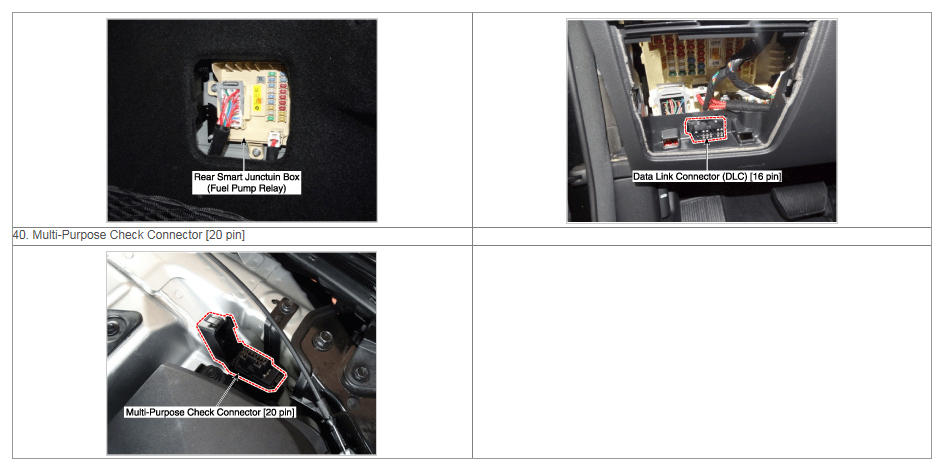

G12657575Courtesy of HYUNDAI MOTOR AMERICA
