Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.

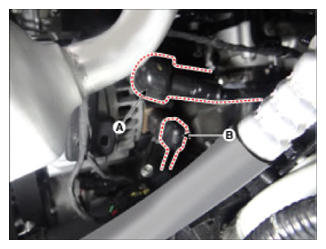

    G13539105Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the alternator lower bolt and upper bolt (A).

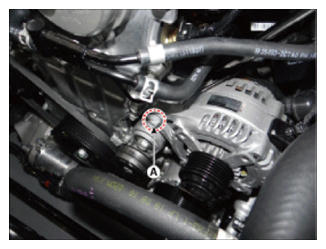

    G13539106Courtesy of HYUNDAI MOTOR AMERICA

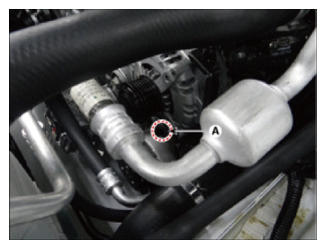

    G13539107Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the alternator (A).

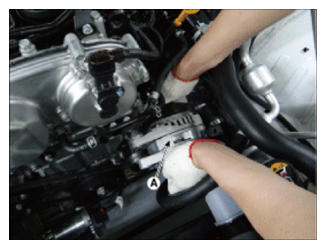

    G13539108Courtesy of HYUNDAI MOTOR AMERICA

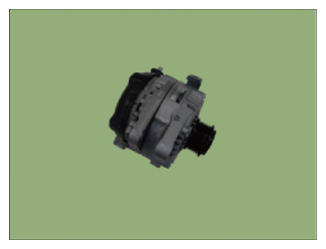

    G13539109Courtesy of HYUNDAI MOTOR AMERICA
