Repair Procedures: Adjustment
NOTE:

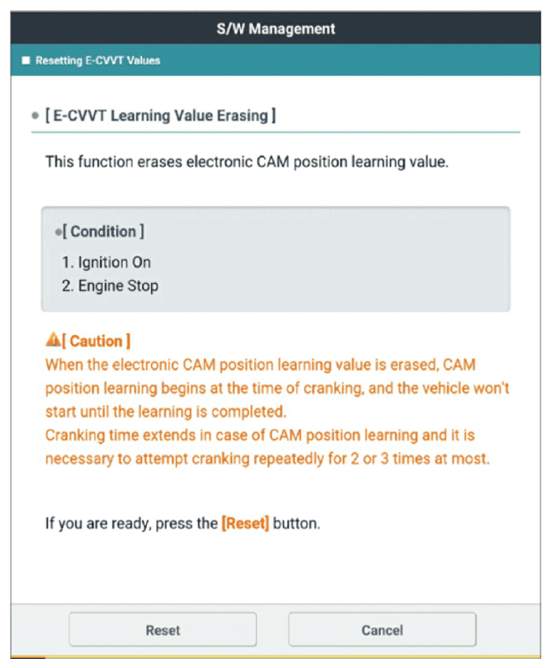

- After replacing or remounting the E-CVVT assembly, be sure to reset the learned value from the additional feature menu on the GDS diagnostic device.
- When the learned value for electronic cam position is erased, start learning the cam position while cranking. The engine can start once this is completed.
- Cranking should be repeated for up to 2-3 times to complete learning.
