[Bank 1/Sensor 2]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

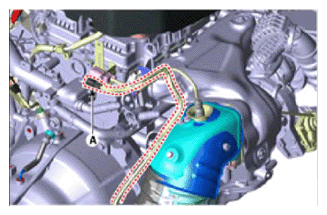

  2. Disconnect the connector (A).
    G13539387Courtesy of HYUNDAI MOTOR AMERICA
  3. Lift the vehicle.

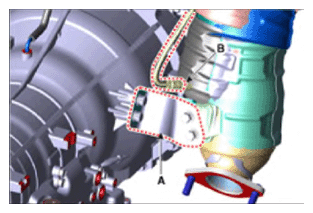

  4. Remove the catalytic converter bracket (A).
  5. Remove the sensor (B).
G13539388Courtesy of HYUNDAI MOTOR AMERICA
