Repair Procedures: Installation

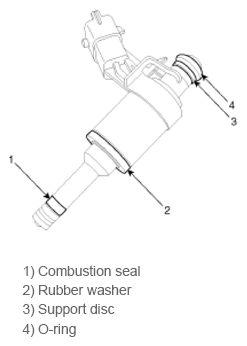

G13539429Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • Do not reuse injector fixing clips.
  • Install the component to the specified torques.
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
  • Apply engine oil to the injector O-ring.
  • Do not reuse injector O-rings.
  • Do not reuse bolts.
  • When inserting the injector, be careful not to damage the injector tip.
NOTE:
  • Do not reuse the support disc.
  • Do not reuse the injector rubber washer.
  • When replacing the rubber washer, the steal plate (A) part should be facing the cylinder installation part and the rubber plate (B) part should be facing the injector body part.
    G13539430Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • Do not reuse the combustion seal.
NOTE:
  • When tightening the delivery pipe installation bolts, pre-tighten them by hand, and then fully tighten them in the sequence of (2) → (3) → (1) → (4).
    Fig 1: Delivery Pipe Bolts Tightening Sequence
    G13539431Courtesy of HYUNDAI MOTOR AMERICA
  1. Install in the reverse order of removal.
