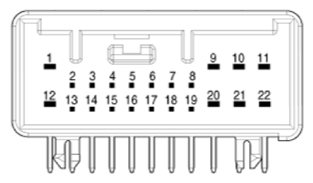

Terminal Function

Courtesy of HYUNDAI MOTOR AMERICA

Pin No	Description
1	B +
2	Tilt sensor input
3	Tele sensor input
4	Tilit up switch input
5	Tele sensor input
6	CAN High
7	CAN Low
8	-
9	Tilt motor up output
10	Battery +
11	Tilt motor down output
12	IG 1
13	Position sensor power output
14	-
15	Tilt down switch input
16	Tele bakcward direction switch input
17	-
18	Ground sensor
19	Ground
20	Ground power
21	Tele motor forward direction output
22	Tele motor backward direction output
