Components Location

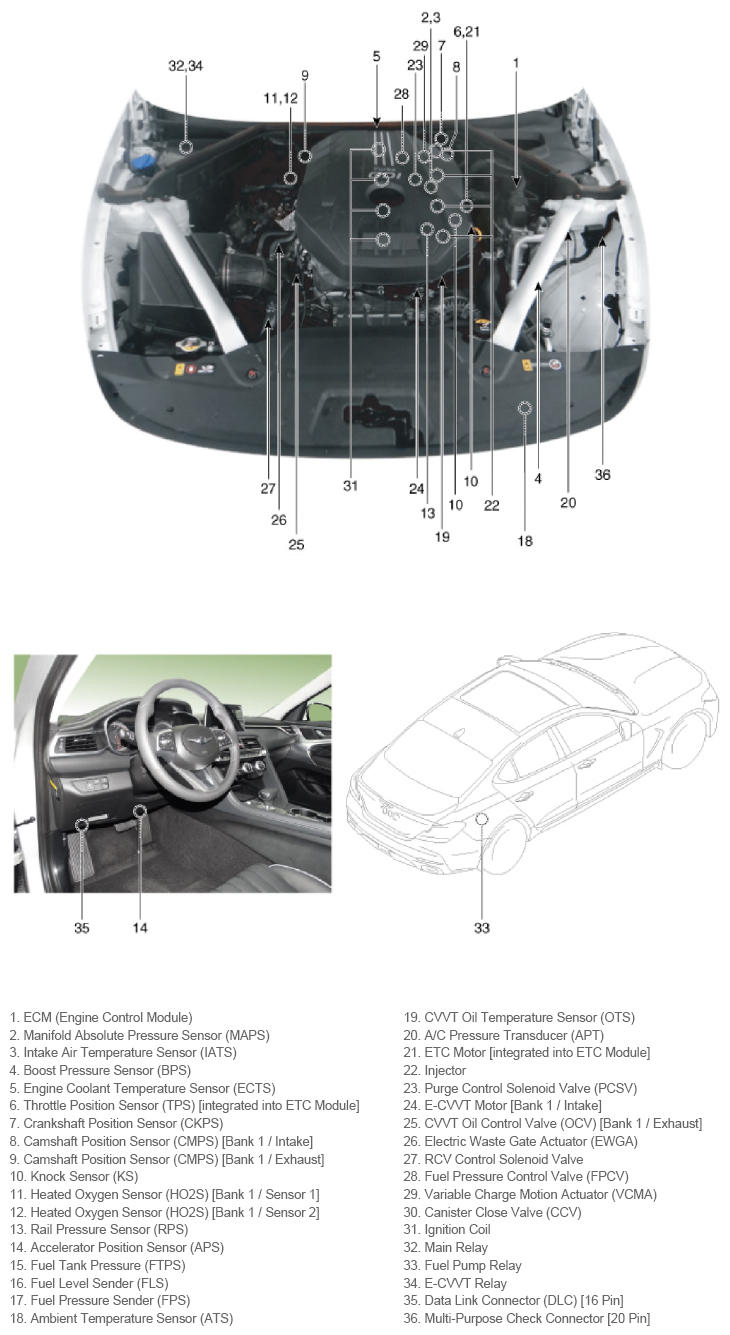

G13539315Courtesy of HYUNDAI MOTOR AMERICA

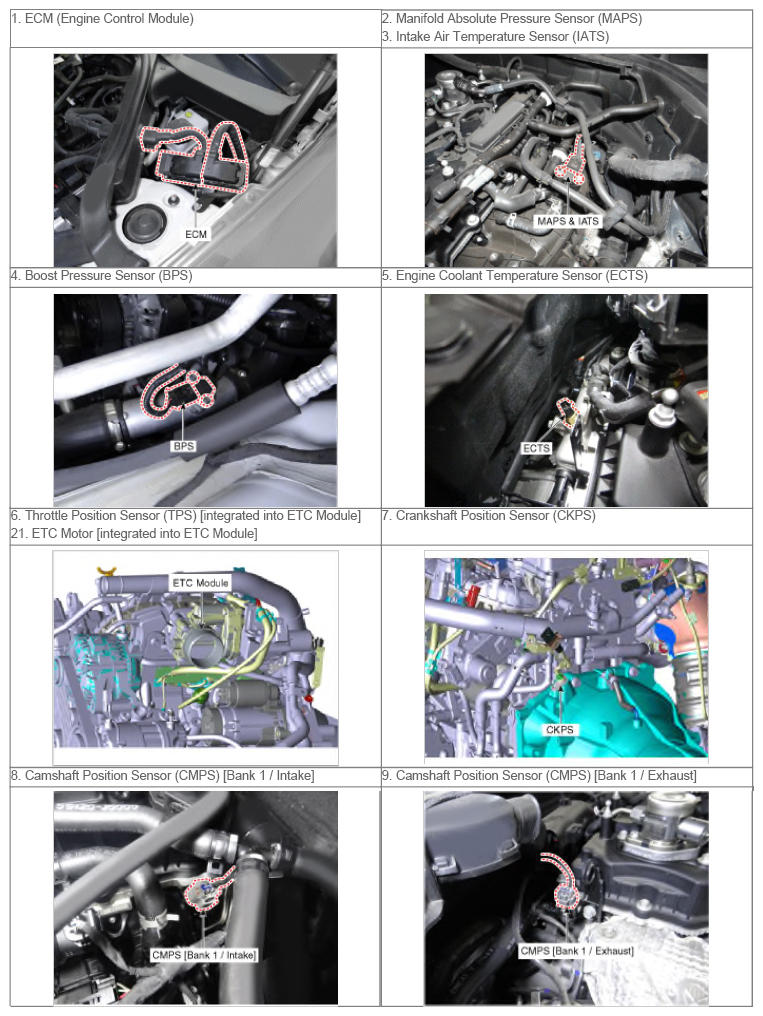

G13539316Courtesy of HYUNDAI MOTOR AMERICA

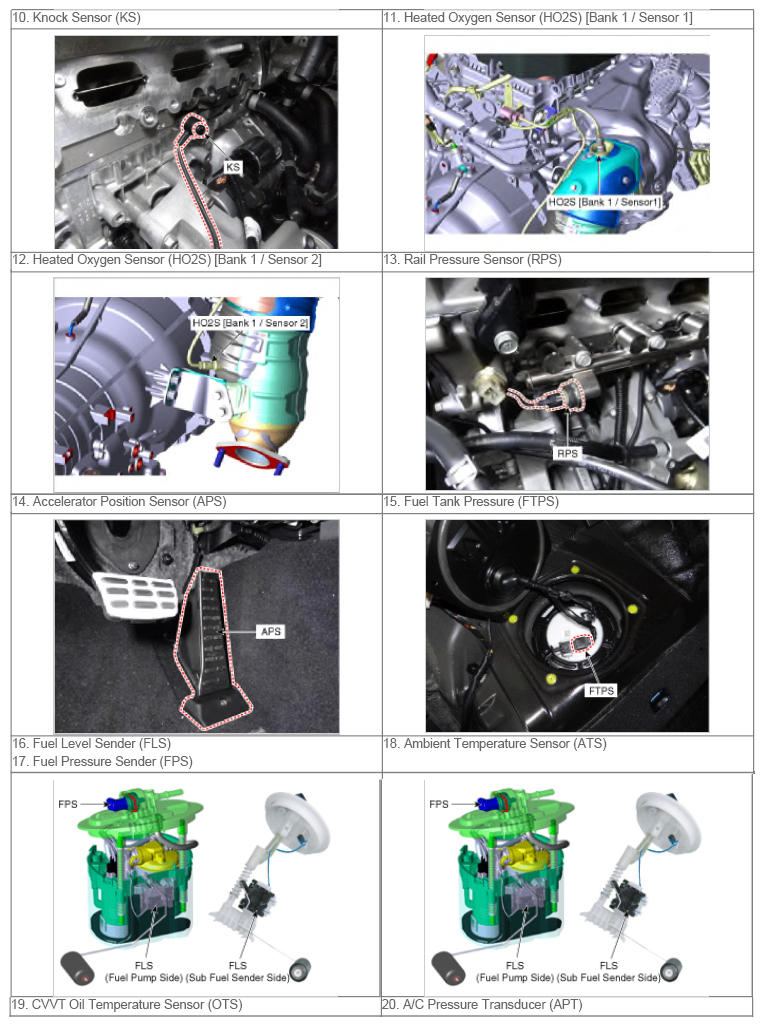

G13539317Courtesy of HYUNDAI MOTOR AMERICA

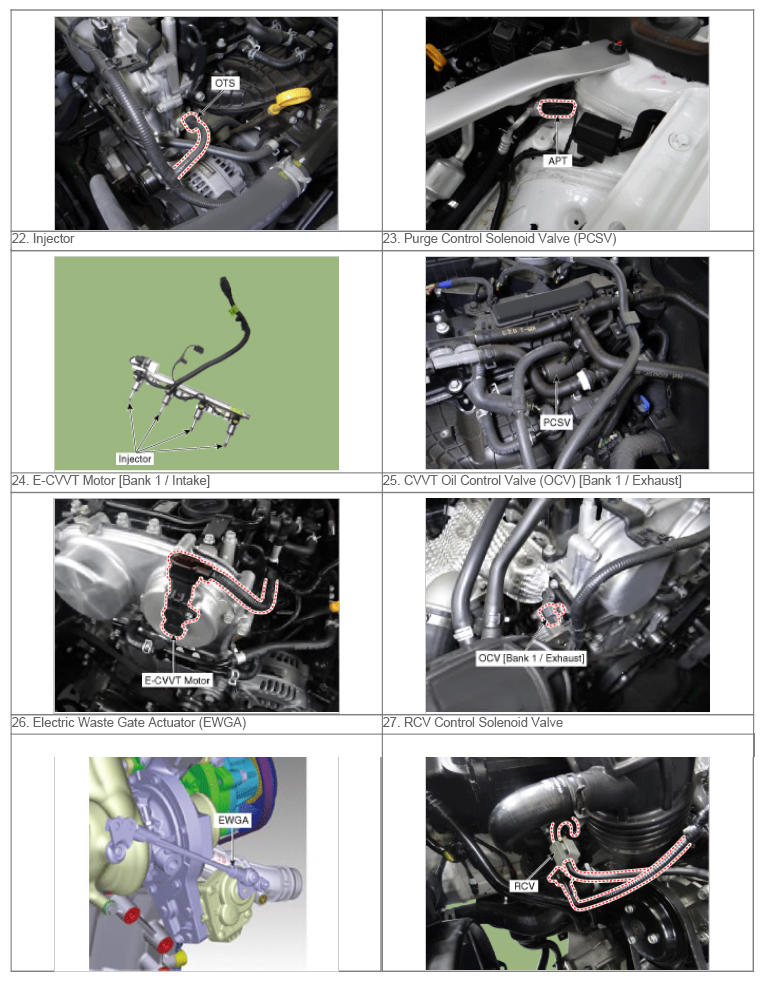

G13539318Courtesy of HYUNDAI MOTOR AMERICA

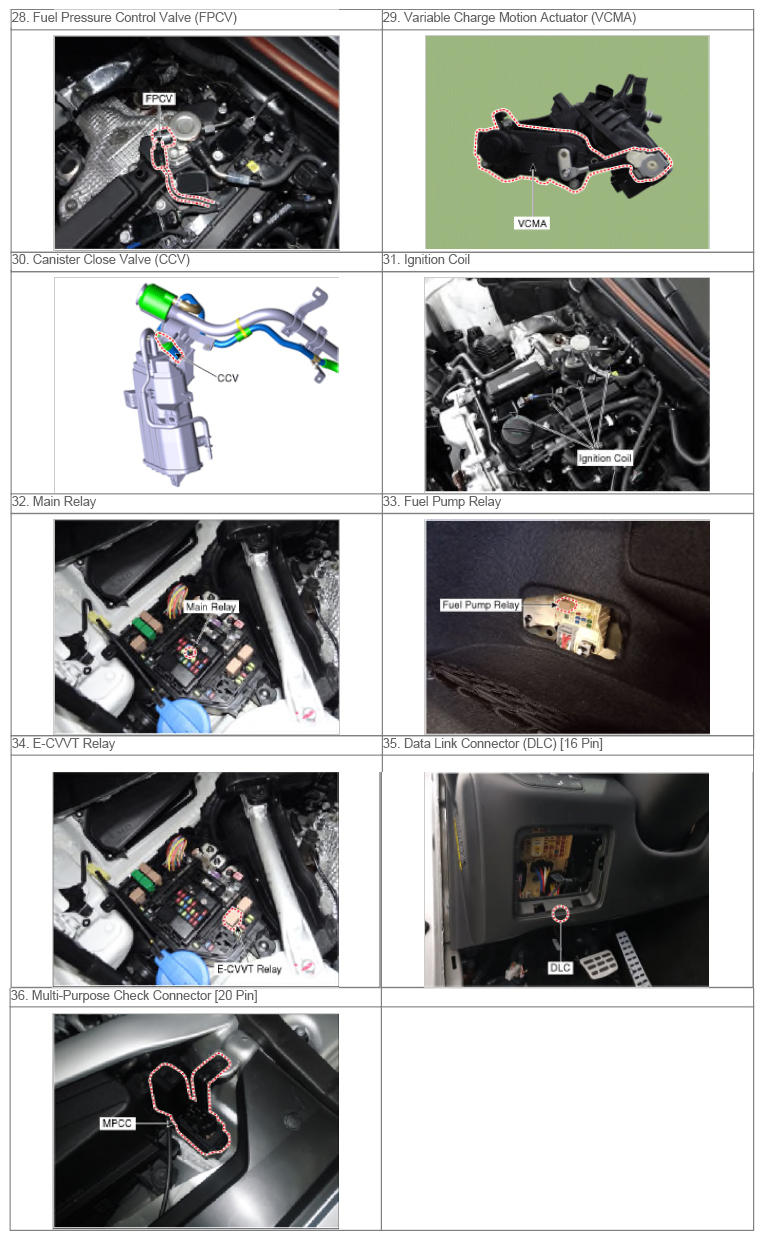

G13539319Courtesy of HYUNDAI MOTOR AMERICA
