[Bank 1/Exhaust]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the cylinder head assembly.

    (Refer to Engine Mechanical System - "CYLINDER HEAD ")

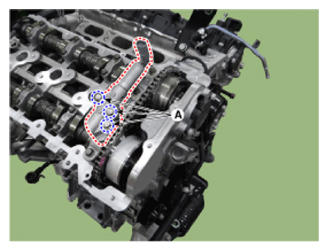

  3. Remove the installation bolt (A), and then remove the valve from the engine.
G13543396Courtesy of HYUNDAI MOTOR AMERICA
