[Bank 1]

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
2. Remove the intake hose.

   (Refer to Engine Mechanical System - "INTAKE AND EXHAUST SYSTEM - 3.3L ")

3. Disconnect the camshaft position sensor connector (A).
4. Remove the installation bolt (B), and then vertically remove the sensor from the cylinder head.

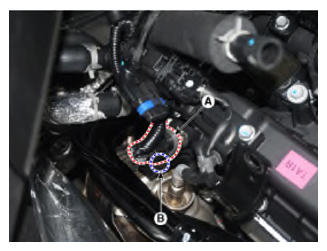

[Bank 1/Intake]

Courtesy of HYUNDAI MOTOR AMERICA

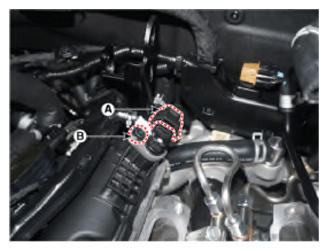

[Bank 1/Exhaust]

Courtesy of HYUNDAI MOTOR AMERICA
