[Bank 1/Sensor 2]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Lift the vehicle.
- Remove the front muffler & center muffler.
(Refer to Engine Mechanical System - "MUFFLER ")

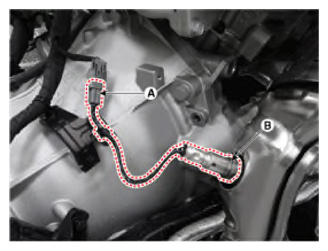

- Disconnect the connector (A), and then remove the sensor (B).
